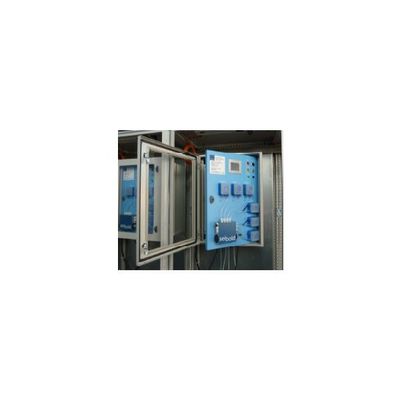

SEIBOLD - Online Analyser for Zinc

Drinking water. Although levels of zinc in surface water and groundwater normally do not exceed 0.01 and 0.05 mg/litre, respectively, concentrations in tap water can be much higher as a result of dissolution of zinc from pipes. Drinking-water containing zinc at levels above 3mg/litre may not be acceptable to consumers.

Toxicity. Zinc or zinc compounds are not listed as suspected carcinogens. Zinc compounds can produce irritation and corrosion of the gastrointestinal tract, along with acute renal tubular necrosis and interstitial nephritis.

Metal is measured as chelate complex between metal ions in the waste water and sensitive spectrophotometric reagent dye. Change of the intensity of the visible light throughout cuvette containing formed metal complex is directly proportional to metal concentration.

• Robust design.
• Minimal maintenance.
• Easy handling.
• High accuracy and precision.
• Suitable for mission critical applications.
• Automated cleaning and calibration.

Measurement method
Spectrophotometric (LED, detector)

Measurement interval
Continuous; Discontinuous (programmable, external start)

Sample and Reagents consumption per measurement
Sample: ~ 75 - 200 ml
Seibold Buffer and Reagent: ~ 3 ml

ENVIRONMENTAL DATA
Ambient operating temperature, sample temperature: 5 to 40°C
Ambient operating humidity: Up to 95 % RH non-condensing (bellow the condensation limit)

ELECTRICAL DATA

Power supply
Supply voltage: 220 … 230 V AC, 50…60 Hz (110 V AC or 24 V DC, optional)
Power consumption: approx 50 VA
Output signal: 4…20 mA

Screen
Color, TFT, liquid crystal display (LCD) with built-in backlight and brightness adjustment.

MAINTENANCE
Maintenance interval: 3 months
