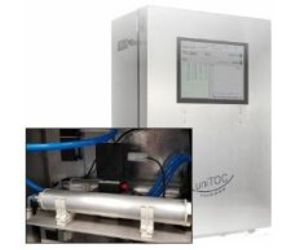

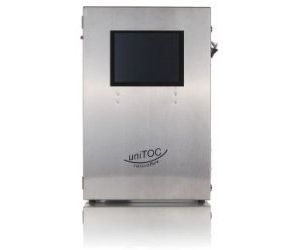

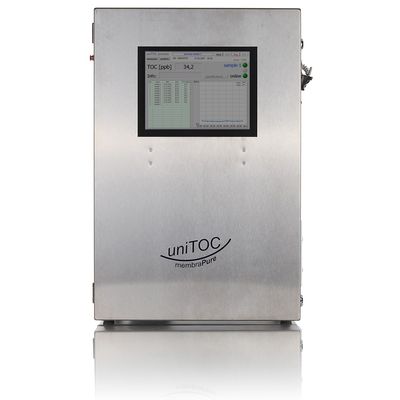

membraPure - Model uniTOC -Online and Offline TOC Analysis of Pure and Ultra Pure Water System
- Calibration and SST of the uniTOC is easy and can be done by the user.
- Online operation is interrupted briefly for the system checks to be performed.
- The operator simply has to connect the inlet with the calibration standard solutions and the diluting water sample.
- The software enables the user to perform calibration and SST independently and the programmable sequence ensures the automatic procedure and data evaluation of the test.
- The verification of the TOC results according to the requirements of USP and Ph.Eur is realised by the periodic performance of system suitability tests.
TOC Analysis from Ground Water to Ultra Pure Water
- NDIR / TOC is detected directly over Carbon Dioxide and not via a 3rd parameter (conductivity). Therefore no limit to conductivity.
- Available for two ranges of TOC
- 9 months UV lamp life guarantee / 50% longer life
- 2 sample inlets / 2 points of the loop can be measured, so double efficiency
- Remote service / online service diagnosis
Analyze pure and ultrapure water with our TOC Analyzers from membraPure
Each of the detection methods have their respective advantages. The miniTOC is more convenient for pure and ultra pure water (conductivity < 2 µS/cm, optional also up to 30 µS/cm), whereas the uniTOC unit offers a wider application spectrum. Both systems have also an offline mode to measure grab samples. All systems can be qualified with IQ/OQ documents.
TOC Monitoring for all major lab applications
- Benchtop, wall mounted (with inclined display) and bench-integrated configurations
- compact housing with small foot print
- Fast & easy cartridge replacement
- Easy-to-use software interface
- intuitive software
- up to 12 months trackable water quality values
- integrated TOC monitoring
- large touchscreen
- flexible and lockable dispenser
Method & detection
UV oxidation (full) & NDIR
Sample volume flow
20 mL (low range), 5 mL loop (high range)
Total Organic Carbon (TOC) range
2 to 5000 ppb (low range), 15 ppb to 20 ppm (high range)
Related norms
USP , EP 2.2.44, DIN EN 1484
DIN 32645, 21 CFR part 11, IP 45

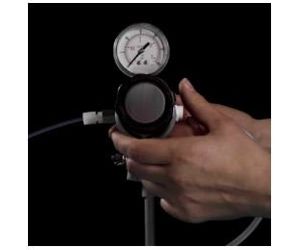

Pressure regulator for medium
If the feed pressure is higher than 1.5 bar a pressure transducer is required.
Validation documents IQ/OQ for uniTOC.

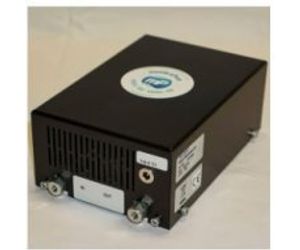

To use compressed air instead of oxygen or nitrogen.
Keeps the temperature below 50 °C degrees.
- method & detection: UV oxidation & NDIR (enhanced oxidation; configurable with reagent)
- sample volume: 20 mL loop (low range), 5 mL loop (high range)
- period of measurement: 6 to 15 min
- measurement rangec2 to 5000 ppb (low range), 15 ppb to 20 ppm (high range)
- detection accuracy: ~3 ppb or 2 % (whatever is greater)
- ports: 2 for samples | 1 for reagent
- related norms: USP <643>, DIN 32645, EP 2.2.44, DIN EN 1484, CFR 21 part 11, IP 45
- ambient parameters: relative humidity: 10 to 95 %, temperature: 10 to 45 °C
- interface ports: analog (4 - 20 mA)
- dimensions, weight, power: 400 x 300 x 600 mm, 24 kg, 110 - 230 V, 50 Hz, 70 to 105 Watt
- type of sample medium: from ground water to ultra pure water
- sample temperature: 10 to 50 °C
- inlet pressure: < 1.5 bar
- compressed gas: air, oxygen, nitrogen | free of carbon dioxide
- inlet pressure of gas: nitrogen: 1 to 1.5 bar | oxygen: 3.5 to 5 bar
