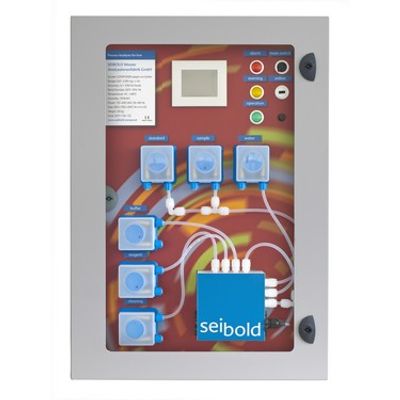

SEIBOLD - Model COMPOSER -Online Heavy Metals Analyser

• Arsenic As
• Cadmium Cd
• Cobalt Co
• Chromium Cr VI
• Copper Cu
• Iron Fe2+, Fe3+, total Fe
• Manganese Mn
• Nickel Ni
• Zink Zn

The measurement range is adjusted by path length of light and chemistry. The measurement range starts at 5 ppb and ends at high ppm range. For drinking water applications it starts at 5 ppb and goes to 1000 ppb or 10 ppb to 2000 ppb. The installed automated dilution unit can expand the range by a factor of 10 (please keep in mind that resolution is the same as non diluted and the error of measurement will increase).

The measurement principle is spectrophotometric based on Lambert- Beer’s low. Metal is measured as chelate complex between metal ions in the waste water and sensitive spectrophotometric reagent dye. Change of the intensity of the visible light throughout cuvette containing formed metal complex is directly proportional to metal concentration.

All of our chemistry used for heavy metal analysis are NOT TOXIC or hazardous. We deliver world wide ready made solutions. Chemistry is buffer solution and reagent.

All analysers are named after Viennese Composers. The main task of the Composer is to combine different musical instruments to a wonderful sound. The same counts for analysers. Perfect analysers combine and adjust chemistry, electronics and mechanics to get the best in class measurements as well as low maintenance and over all a low TCO. (…and we dislike strange number and letter combinations for great instruments …).

• Robust design.
• Minimal maintenance.
• Easy handling.
• Highest accuracy of measurement and high precision.
• Suitable for mission critical applications.
• Automated cleaning and calibration and dilution.
• Can perform complex control tasks via analogue and digital communication.
