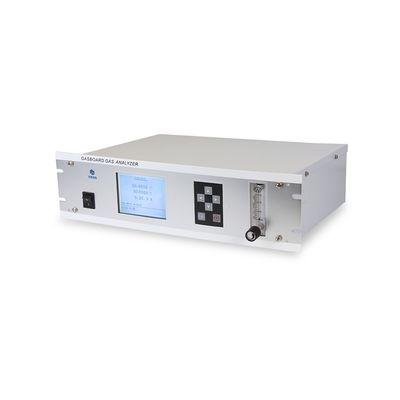

Cubic Instruments - Model Gasboard-3000 Plus -Online Infrared Flue Gas Analyzer
Gasboard 3000Plus is designed with world-leading micro-flow infrared sensor, is able to measure continuously simultaneously concentration of CO,CO2,SO2,NO,especially for lower range measurement. It is an ideal solution for monitoring in fields of boiler, power plant, combustion efficiency monitoring for various industrial furnaces or refuse incinerator, process and security monitoring.
Most popular related searches
flue gas analyzer
combustion performance monitoring
gas analyzer
flue gas
infrared flue gas analyzer
NDIR gas sensor
oxygen monitoring system
gas sensor system
oxygen monitoring
combustion performance
- Adopting micro-flow NDIR gas sensor technology, higher precision and longer life time.
- Monitoring the loweer range of SO2, NO, CO within 200ppm.
- No cross interference between measurement gases.
- Diagnostic function can check sensor status.
- Sampling flow rate fluctuations have no effect on the measurement results.
- Accurate measurement of low concentration gas.
- Built-in pump to achieve automatic zeroing.
- Real-time continuous monitoring concentration of SO2, NO, CO, CO2, O2 , measurement component is optional.
- LCD (320*240) display.
- Digital and analog signal output.
- Measurement Components: SO2, NO, CO, CO2, O2
- Measurement Technology: SO2/NO/CO:Micro-flow NDIR; CO2:NDIR; O2:ECD
- Measurement Range: SO2/NO:(0-200)ppm; CO:(500-5000)ppm; CO2/O2:(0~25)%
- Accuracy: ≤±2%F.S.
- Resolution: SO2/NO:1ppm; CO:1ppm; CO2/O2:0.01%
- Repeatability: <2%
- Response time: T90<25s(NDIR)
- Flow rate: (0.7~1.2)L/min
- Output: RS-485/RS-232, (4-20)mA
- Power Supply: 100~240VAC,150W
- With self-diagnosis function, can check the sensor status online
- Built in zeroing Pump to achieve auto-zeroing in air
Boiler, furnace exhaust emission gas and combustion efficiency monitoring, cement production line process and security monitoring, CEMS integration.
