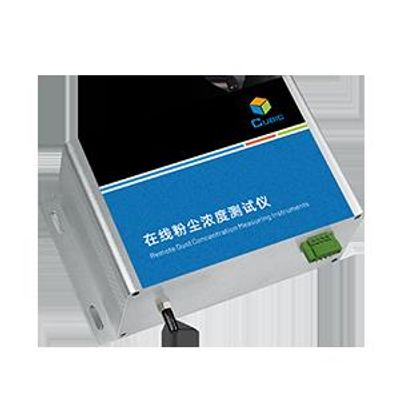

Cubic - Model OPM-6303M -Online Outdoor Dust Monitor
Online outdoor particulate monitor OPM-6303M adopts a pump-suction sampling method and has a solid and reliable metal structure with intelligent auto particle identification (API) technology which enable the measurement accuracy in different dust source scenarios. It can accurately and stably output PM2.5, PM10, TSP mass concentration. The built-in pretreatment heater and flow monitoring sensor to make sure the device can output stable values and no affect by the humidity of the outdoor working environment.Most popular related searches
dust monitoring
dust monitoring system
ambient dust monitoring
ambient particulate monitoring
flow sensor
particulate monitoring
PM10 mass monitoring
remote monitoring
meteorology system
particle monitoring
- 5 in 1 integrated particulate monitor with heater, dust sensor, filter, flow sensor and pump
- Concentration measurement of PM1.0, PM2.5, PM4.25(optional), PM10 and TSP
- Linear correlation with β rays R² >0.9
- Built-in high power industrial grade linear laser, accurate identification
- Built-in pump and flow sensor for constant stable sampling
- Built-in constant temperature pretreatment, suitable for high humidity environment
- Cubic API technology for intelligent dust source identification and accurately measurement
- Wide working temperature -30℃~70℃, suitable for extreme weather environment
- Modbus RS485 output for online remote monitoring
- Operating principle: Laser scattering
- Measurement range: 0~30,000μg/m³
- Output channels: PM1.0, PM2.5, PM4.25(optional), PM10 and TSP
- Accuracy: PM1.0/PM2.5: ≤100ug/m³: ±10μg/m³, 100~1000μg/m³: ±10%reading
- PM10: ≤100μg/m³: ±15μg/m³, 100~1000μg/m³: ±15%Reading
- TSP (Note 1): ≤100μg/m³: ±20μg/m³, 100~1000μg/m³: ±20%Reading
- Condition: 0℃~40℃, 50±10%RH, calibration instrument: Met One
- Time to first reading: ≤ 8s
- Data refresh time: 1s
- Sampling flow rate: 1L/min
- Working condition: -30°C ~ 70°C,0-95%RH (non-condensing)
- Storage condition: -40°C ~ 85°C, 0-95%RH (non-condensing)
- Power supply: DC 12V, ripple wave < 50mV
- Working current: ≤4.5A
- Communication: RS485
- Dimensions: W202*H90*D125 (mm)
- Life span: ≥3 years
