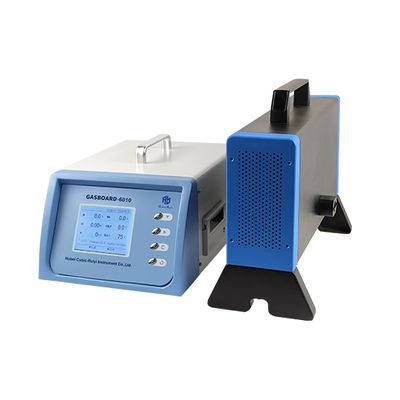

Cubic Instruments - Model Gasboard-6010 -Opacity Monitor
Gasboard-6010 opacity meter provides a simple and accurate way to measure the opacity of smoke emitted from diesel vehicle by partial flow technology. This model can measure the complete opacity spectrum from 0-100% in either continuous or free acceleration test.
Most popular related searches
vehicle emissions gas analyzer
opacity meter
emissions gas analyzer
emission gas
opacity monitor
opacity monitoring
gas analyzer
vehicle emissions analyzer
emissions analyzer
sampling probe
- Real-time display of N value and K value
- Partial flow technology ensures high accuracy
- Module sensor design for easy maintenance.
- Outstanding accuracy, stability and durability
- Auto-zero calibration with fresh air
- RS-232 communication
- Optional Built-in printer
- Measurement: Opacity degree N value, light absorption coefficient K value
- Technology: Partial flow sampling-type
- Measuring range
- N Value:(0-99.99)%
- K Value:0-16m-1
- Resolution
- N Value:0.01%
- K Value:0.10%
- Accuracy: ±2.0%
- Warm-up time: 15 minutes
- Display: LCD display
- Response time: 1 ±0.1second
- Power: AC220V±10% 50Hz±1Hz
- Operation temperture: 0-40?
- Dimension:
- Display:450mm*260mm*180mm(L*W*H)
- Opacity meter:460mm*230mm*465mm(L*W*H)
- Weight: Display: 5kg, Opacity meter:7kg

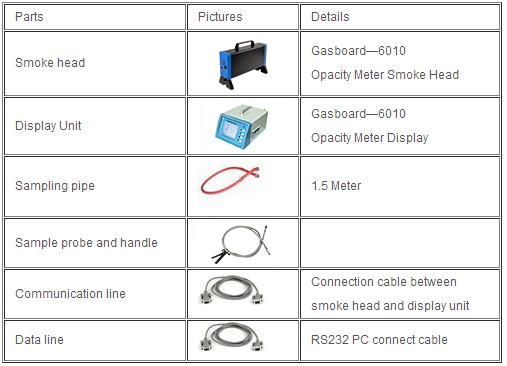

- Standard accessories: Sampling pipe, smpling probe and handle communication cable, RS-232 cable, power cable
- Options: Inbuilt printer, RPM measurement
Gasboard-6010 Opacity Meter provides a simple and accurate way to detect and measure the opacity of smoke emitted from a diesel engine and vehicle. This model can measure the complete opacity spectrum from 0-100% in either continuous or free acceleration test. The test results can be printed individually on the built-in printer.
