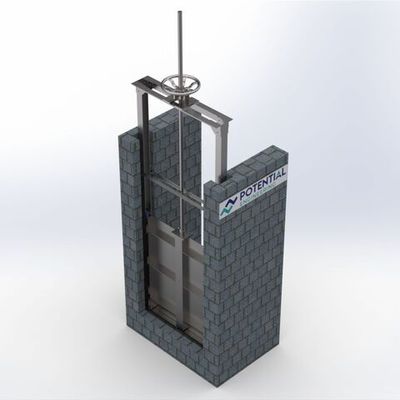

Potential - Open Channel Gate
Open channel gate is used to control the flow and to isolate fluids associated with water, wastewater, sewage treatment plants, power generation, irrigation schemes and process plants. A modern Open channel gate is designed to cater to a wide variety of duties from low seating to high off-seating heads. The size ranges from 150 mm to 3000 mm. It can be a rectangular or square section. Operation of the gate can be simple direct operation by use of a handwheel or complex control system for electrical, pneumatic, or hydraulic actuation. It is available in both flush bottom and conventional bottom configurations.
Open channel gate is used to channel water flow and water distribution control. The gate is mounted between two side-channel grooves or walls embedded and anchored in grooves provided in the sidewalls of the channel and anchored on the face of the wall at the end of the channel using anchor fasteners. It can also be installed on the parallel walls of the channel, post-wall construction. We specialize in the manufacture of open-channel sluice gates as per your requirements.
- Size : 150 mm to 3000mm
- Shapes : Square/ Rectangular
- MOC : CI/ SS/ CS/ AL
- Sealing : 3 sides
- Actuation : Manual, Motorized, Hydraulic, Pneumatic
- Design standards : IS 3042.1965/ IS 13349.1992/ A WW A C513
- Customized design
- Manual or automatic operation
- Flush / conventional bottom closure
- Easy to install
- Low maintenance
- Safe operation in hazardous areas
- Easy availability of spares
- Oily Water Treatment
- SBR Plants
- MBR Plants
- Pre-treatment Solutions
- Post-treatment Solutions
- Oil & Gas
- Wastewater & Water
- Power
- Steel
- Municipal
- Mining
- Dairy
- Sugar
- Pharma
- Food & beverages
- Chemicals
- Miscellaneous (Wood, textiles, glass, paper etc)
