Newland Entech - Model NLQ - K / V Series -Open Channel Vertical UV Disinfection System

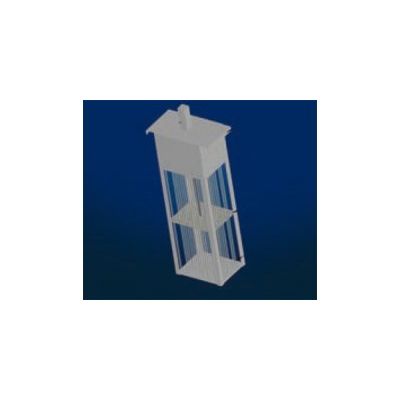

Newland NLQ – K / V Series Open-Channel UV Disinfection System adopts vertical modular design. Each UVC disinfection module consists of a stainless steel frame, several UV lamps, quartz sleeve with high transmittance, automatic cleaning system, power distribution system and data acquisition system. The installation mode for lamp and quartz sleeve is vertical, and lamps are staggered (the section looks like Plum blossom shape). The whole UVC disinfection system consists of several UV disinfection modules.
Most popular related searches
ultraviolet disinfection system
ultraviolet disinfection
disinfection system
open ultraviolet disinfection system
UV-C disinfection system
data acquisition system
quartz sleeve
UV-C disinfection
water quality
UV system
- The staggered array mode for lamps is much more conducive to the formation of turbulent flow pattern. The particle in the water could be irradiated by UV light much more equally. It can improve the lamp efficiency and disinfection effect.
- When the flow becomes smaller or the water quality becomes better, we could turn off UV modules one by one, even line by line in proportion according to requirements, which is energy saving and consumption reducing. On the contrary, when the flow becomes larger or the water quality becomes worse, it is convenient to increase modules without stop flow in the original construction conditions.
- The vertical type module is suitable for large quantity water disinfection.
