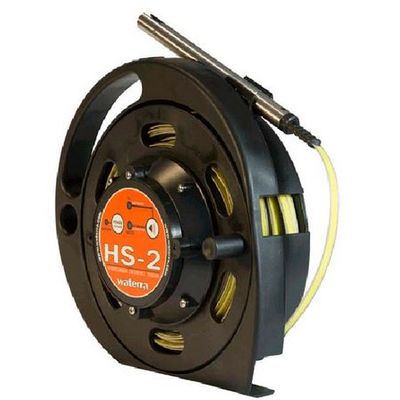

Waterra - Model HS-2 -Open Reel Oil-Water Interface Sensors

HS-2 Waterra Oil – Water Interface Sensors represent some of the most advanced technology available today for hydrocarbon product layer measurement. These devices utilize sophisticated ultrasonic sensors to help define the product layer. Tests have shown that these sensors are more sensitive in a broader range of hydrocarbon products than conventional optical systems.

Waterra Oil – Water Interface Sensors are available in three reel configurations:

The 3/8″ stainless steel flat tape tapes are available in:

• Polyethylene coated and
• Kynar® coated

Choose either:

• Metric tapes – graduated to the nearest millimetre
• Imperial tapes – graduated to the nearest 1/100 of a foot

Waterra Oil-Water Interface Sensors HS-2 Features

• auto shut-off
• rugged modular construction
• powered by 4 AA batteries
• membrane ON/OFF switch
• extremely low power consumption
• sensor’s probe is 5/8″ diameter 316 stainless steel
• probe snaps into a probe holder on the side of the reel when not in use
• ultrasonic transducer used to detect hydrocarbons and a conductivity sensor to detect water
• dog bone polyethylene tape cross-section design prevents adherence to wet surfaces such as well casings
• metric tapes are graduated to the nearest millimetre
• imperial tapes are graduated to the nearest 1/100 of a foot

Option – Kynar Coated Tape

• extremely non-reactive with many different substances
• extremely pure, strong, and able to resist heat, bases, acids, and solvents
• very resistant to ultraviolet rays
• Kynar is a fluorocarbon (PVDF) so if PFOA or PFAS are concerns at your site, you may want to use a polyethylene tape instead

• Weight     N/A
• Dimensions N/A
