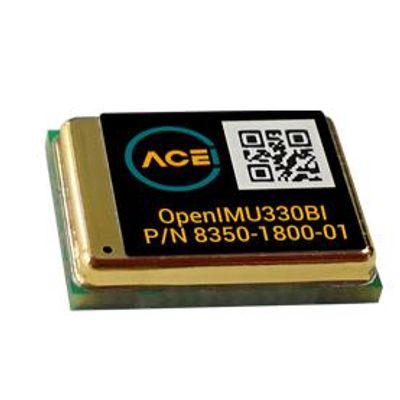

Aceinna - Model OpenIMU330B -Open Source Triple Redundant Surface Mount Inertial Measurement Units (IMU)
FromAceinna, Inc.
The ACEINNA OpenIMU330B is a triple-redundant 6 Degree-of-Freedom surface mount Inertial Measurement Unit (IMU) designed for use in automotive Level 3 ADAS and other high-volume applications. The triple-redundant architecture combined with the small, low-cost packaging is intended to meet the challenging performance, reliability and cost requirements of the automotive market.
Most popular related searches
- # of Axis 6
- Product Type Surface Mount
- Footprint 11 x 15 x 3 mm
- Interface SPI / UART
- Package Ball Grid Array - 44 ball
- Gyro Range 400 +/- deg/sec
- Gyro In-Run Bias Stability 2 deg/hr
- Gyro Scale Factor Accuracy 0.02%
- Gyro Bandwidth 5-50Hz
- Gyro Bias Over Temp 0.3 deg/sec
- Gyro Angular Random Walk 0.2 deg/ √hr
- Accel Range 8 g
- Accel Bandwidth 5-50 Hz
- Triple Redundant, 3 axis MEMS angular rate sensor
- Triple Redundant, High Performance 3 axis MEMS Accelerometer
- Open Source Tool Chain and Custom Algorithms
- 32 Bit ARM M4 CPU with Floating Point Unit
- Built in 16-State Open Source Extended Kalman Filter
- SPI and UART interfaces
- Up to 3 UARTs
- Wide Temp Range, -40C to +85C
- High Reliability
- MTBF > 50k hours
- Open Community & Support
- Autonomous Vehicles
- Self-Driving Taxis/Delivery Vehicles
- ADAS Systems
- Electronic Stability Control
- Lane Keep Assist
