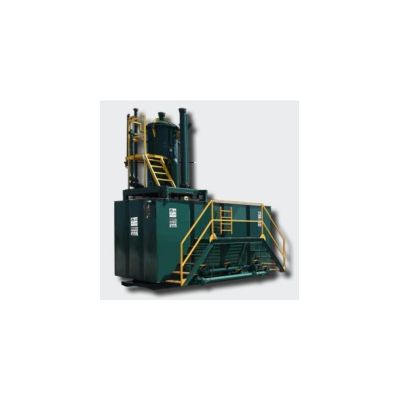

Model 120 BBL -Open Top Tank with Gas Buster

120 BBL Open Top Tank
Dry Weight: (Lift Empty Only) 10,000 lbs
Unit Length: 16’
Unit Width: 8’6”
Unit Height: 8’4”

25 BBL Compartment
Unit Length: 3’3”
Unit Width: 5’11”
Unit Height: 6’11”

47.5 BBL Compartment
Unit Length: 6’4”
Unit Width: 5’11”
Unit Height: 6’11”

Equipment Specifications

• Three Compartments: One 25 BBL, Two 47.5 BBL
• Two Hydraulic Mixers (Auger & Paddle Comb.)
• 3” Male & Female Camlocs with Ball Valves on Manifold Line / Gun Line
• Suction and Discharge Line 4” Fig. 100 Unions, Thread and Wing Half, with Butterfly Valves

Equipment Weights & Dimensions

Gas Buster
Dry Weight (Lift Empty Only): 5,000 lbs
Unit Length: 6’1”
Unit Width: 5’3”
Unit Height: 8’10.5”

Features

• Built-in Mist Extractor
• Adjustable Legs
• Removable Top for Thorough Inspection and Cleaning
• Removable Wear Plates

Equipment Specifications

• 36” OD Pipe 6’1” Seam to Seam, 8” Overflow Line, 6” Dump Line, 6” Riser
• Two Fill Lines: 3” 1502 Wing x 2” 1502 Thread Half
• 6” Butterfly Valve on Bottom
