Optech - Waveform Recorder
From Airborne LiDAR Survey System
The Waveform Recorder provides waveform capture capability for all ALTM models. Benefits include true ground detection, increased return density, improved target separation distances, and improved classification results. Available as a small strap-on peripheral, the Waveform Recorder is shipped and installed in the field directly by clients in a matter of minutes. This standalone configuration also enables the Waveform Recorder to be moved from system to system as the need arises, giving surveyors the on-demand capability they need.
Waveform Recorder Advantages
- High recording speeds provide data capture rates up to 125 kHz
- Intelligent digitizer automatically sub-samples collection rates above 125 kHz
- Detailed pulse amplitude and cross-section information

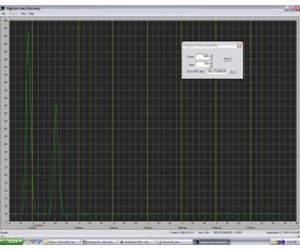

- Real-time display enables in-air quality feedback
- Solid-state disk storage enables unrestricted flight altitudes
- Captures the complete return waveform and calculates XYZI positions of the detected reflections
- Timestamps waveforms with GPS time for synchronization with other ALTM data
- Sophisticated processing algorithms provide accurate and precise datasets in LAS 1.3 formats
Applications
Natural Resources
- Agriculture
- Environmental
- Forestry
