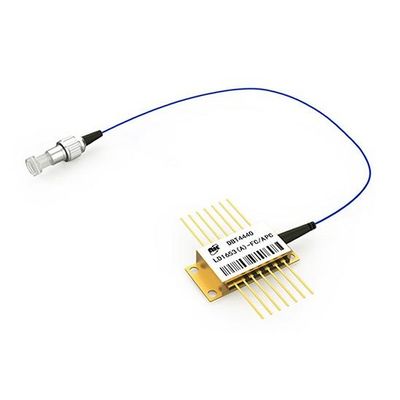

Dalian Actech - Model 14pin BTF -Optical Communication Modules

With temperature control and pigtail assembled, the 14pin BTF module is the standard butterfly packaged module. With isolator and TEC built inside to reduce the factors that may change the wavelength, thus to make the wavelength more stable, with excellent SMSR and wavelength stability, the BTF module is widely used in laser sensor field. 600-2400nm center wavelength, and assembly type can be customized.
