Comex - Model OSX -Optical Sorting System

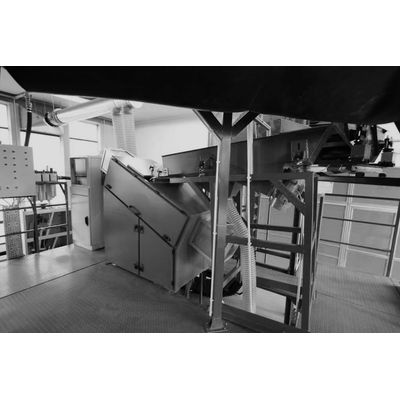

The optical sorting system OSX (Optical Sorting ComeX) is distinguished by advanced image processing functions. The use of advanced and constantly updated software in the sorter makes it very competitive with the rest of the systems used on the market for a long time. The innovativeness of this sorting system is possible thanks to Comex’s constant cooperation with the research community, including the largest Scandinavian research institute.
In the BF configuration, the material is fed to the sorting device using a belt feeder. This allows for a very accurate mapping of material particles in the space of the image analysis window. Behavior are stable flight trajectories at the time of analysis and separation after leaving the feeder zone. In this way, you gain the ability to accurately reject the separated material, which ensures separation with high accuracy and efficiency.
In the FF configuration, the material is fed to the sorting device directly by means of a vibrating feeder. The material in the further separation phase remains in free fall. Thanks to such material feeding, the optical sorting system can remain small in size. There is no need for a conveyor belt.
The FF configuration is recommended for medium and large particles (above 50-60 mm) due to its lower separation accuracy.
Our OSX optical sorting system is available in three variants: OSX-600, OSX-1000 and OSX-1500. They differ primarily in the minimum size of separated particles and the typical work efficiency for particles in particular sizes.

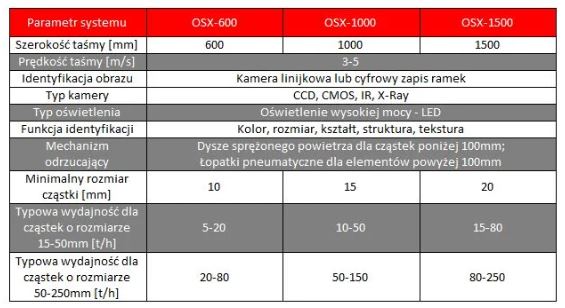

Below we present the detailed parameters of each of the OSX variants. If you need more information about any of them, please contact us.
Our sorting solutions are particularly desired by companies operating in the processing, mining and construction industries. Separation systems will prove themselves in industrial processes, especially in the mining industry.
They can be used to sort metal ore or coal. Our innovative grinding systems have been used by companies from the metallurgical, food, medical and electronics industries for years.
The scope of use of sorting products increases with our mobile sorting system, installed in standard sea containers. It is a flexible, easy to move and install anywhere logistics solution.
Regardless of where the sorting systems operate, they will ensure a reduction in separation costs, reduction of energy consumption in the plant, reduction of transport costs and a significant reduction in the amount of waste.
