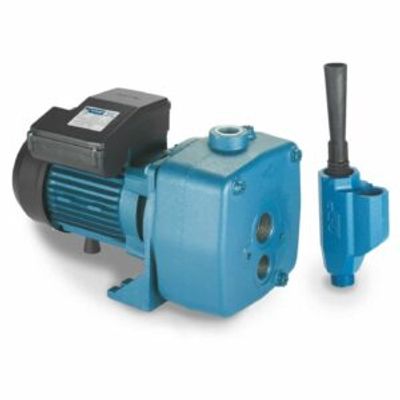

Osip - Model DW-JET -Deep-Wells Domestic Electropumps

TYPE:
Self-priming electropump.

MAXIMUM SUCTION DEPTH:
This system is designed to lift water from wells with a minimum diameter of 4” (approx. 11cm).
The (ideal) maximum suction depth for this pump is approx 15-20 metres / 49-65 ft using P20 ejectors and approx 20-30 metres / 66-98 ft using P30 ejectors (these values may vary according to altitude and temperature).

SUGGESTED APPLICATIONS:
Small irrigations (gardens, vegetable gardens).
This pump is usually equipped with a pressure tank, to use it in the automatic way.

MAX OPERATING TEMPERATURES:
35 °C / 95 °F (water), 40 °C / 104 °F (environment).

• Pump body: Cast Iron
• Motor bracket: Cast Iron
• Impeller: Noryl
• Diffuser: Noryl
• Mechanical seals: ceramic steatite / carbon graphite
• Insulation class: F
• Protection class: IPX4

• Tipologia : surface
• Tipo acqua: clean
• Potenza : 1,1 – 2,0 Hp, 2,1 – 3,0 Hp
