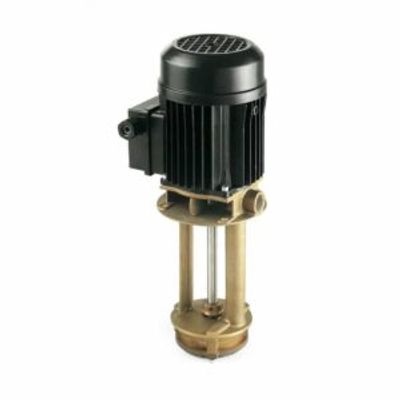

Osip - Model PS 60 -High Pressure Industrial Electropumps

TYPE:
Submerged stem industrial pump.

DESCRIPTION:
These electric pumps combine the advantages of the vertical submerged end pump and peripheral impeller. It develops high pressure against limited flow to pump refrigerant liquids through limited section nozzles (i.e. chippings removal in machining tools centres).

• Stem: Brass 58
• Impeller: Brass 58
• Pump body:  Brass 58
• Motor shaft: S. steel AISI 303
• Motor casing: Aluminium type – MEC 63
• Motor: Closed externally ventilated
• Paint: Black electrophoretic
• Screws: S. steel
• Insulation class: F
• Protection class: IPX5

• Tipologia Surface
• Tipo acqua : Waste
• Potenza : 0,1 – 1,0 Hp
