OSSI - Model OSSI-010-003C -Submersible Self Logging, Self Powered Pressure Sensor

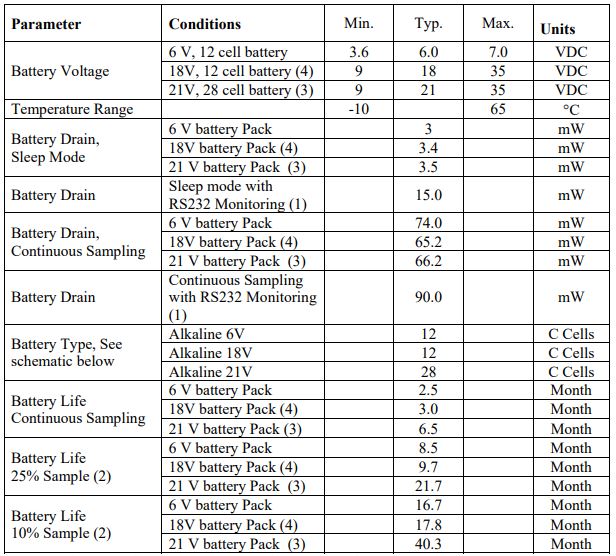

The Wave Gauge is a submersible self logging, self powered pressure sensor. It combines a temperature compensated, highly stable, pressure sensor, a Compact Flash Card Data Logger, a rugged waterproof package and 12 C size Alkaline Batteries. See the Data Sheet for complete details and features. (Supplied with 1 battery, 1 Serial Port Adapter and 1 2GB Flash Card).

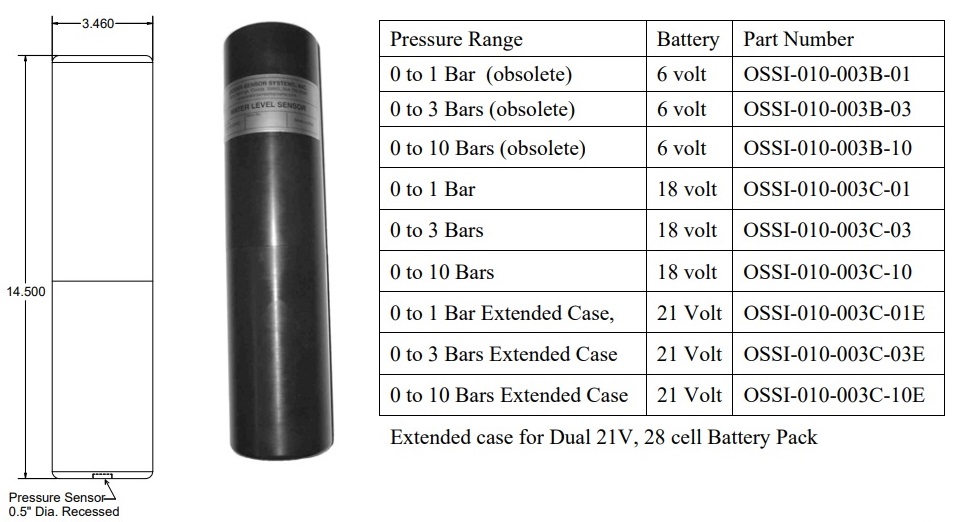

The OSSI-010-003B/C Wave Gauge combines a highly stable Pressure Sensor, a Compact Flash Card Data Logger, a rugged waterproof package and 12 or 28 C size Alkaline Batteries. A Low Power Microprocessor records up to 2 Gigabytes of data on a Compact Flash Card in an ASCII or Binary format with time and date. Then the Card is easily removed and can be read on any PC with a standard Compact Flash Card Reader. The Logger will collect months of continuous data or years of burst data. A serial port is provided as a user interface to configure and monitor the Wave Gauge. Standard pressure ranges are 0 to 1 Bar, 0 to 3 Bars and 0 to 10 Bars.
- Standard Compact Flash Card Data Storage
- Data storage up to 2 Gigabytes
- Standard Card Reader Compatible
- Power with 12 or 28 C Size Alkaline Batteries
- Flush Hastelloy Diaphragm
- ABS Plastic Housing Rated to 100 Meters
- Months of Continuous Operation
- Years of Burst Operation
- Rugged Sealed Waterproof Design
- Fully Programmable via RS232
- PC Interface Software
- Binary or ASCII Data Format
- Sample Rate From 2 Hz to 30Hz
- Burst or Continuous Sampling
- Accuracy ± 0.05% FS, 10 to 40 ℃
- Resolution 0.0033%FS
- Long Term Stability ± 0.05%FS
- Optional Water Temperature Logging
