Ocean Sensor Systems products

The Wave Gauge is a submersible self logging, self powered pressure sensor. It combines a temperature compensated, highly stable, pressure sensor, a Compact Flash Card Data Logger, a rugged waterproof package and 12 C size Alkaline Batteries. See the Data Sheet for complete details and features. (Supplied with 1 battery, 1 Serial Port Adapter and 1 2GB Flash Card).

Wave GaugeBlue: OSSI-010-022 The Wave Gauge Blue is a submersible self logging, self powered pressure sensor. It combines a temperature compensated, highly stable, pressure sensor, a Compact Flash Card Data Logger, a rugged waterproof package and 12 C size Alkaline Batteries. See the Data Sheet for complete details and features. (Supplied with 1 battery, 1 Serial Port Adapter and 1 2GB Flash Card).

The External Pressure Sensors are used with the Wave Gauge Blue Pressure Sensor Array option. They are submersible pressure sensors designed to link to the Wave Gauge Blue for directional wave measurements. They are powered by the Wave Gauge Blue`s Battery Pack. The data link is a daisy chain RS485. The Pressure Sensors are identical to that of the Wave Gauge Blue`s Pressure Sensor.

The Wave Staff is a fast capacitive type water level sensor.  It operates from 5.5 Volts to 40 Volts, has a sample rate up to 30Hz for RS232 output and 100 Hz for 0 to 5 Volts output.  See the Data Sheet for complete details and features. Version F is a 100 Hz sample rate software upgrade from version E.

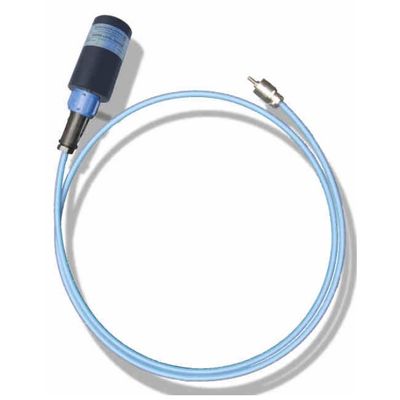

The Wave Staff III is a fast capacitive type water level sensor with a self grounded coax staff.   It operates from 5.5 Volts to 40 Volts, has a sample rate up to 30Hz and outputs RS232 and 0 to 5 Volts.  See the Data Sheet for complete details and features.

A Wireless Wave Staff with Synchronized Sampling and Self-Grounding Rod & Coaxial Cable Staffs. The OSSI010-025 Wave Staff XB is a water level sensor that combines a rugged, IP67 resistant to water submersion package, Xbee RF Module, low power microprocessor and Anti-aliasing sensing circuit. Months of operation with two Industry standard C size alkaline batteries. Sensor Staffs from 0.5 meters long to 20 meters long. The self-grounding Coaxial Rod and Cable Staffs eliminate the need for a separate water ground wire. Laptops and PCs can easily receive the Wave Staff XBÂ’s data with any one of several optional wireless Adaptors. Time stamped data can be used to synchronize up to 8 Wave Staff XBs. A new, easy to use, PC Interface Program is available to down load from our web site to configure, display, analyze and store the sensor data.

The Wave Logger is a self logging, self powered Wave Staff. It combines the high performance Wave Staff circuit, a Compact Flash Card Data Logger, a rugged waterproof package and 4 C size Alkaline Batteries. See the Data Sheet for complete details and features. (Supplied with 1 battery, 1 Serial Port Adapter and 1 512MB Flash Card).

The Wave Logger III is a self logging, self powered Wave Staff with a self grounded coax staff.   It combines the high performance Wave Staff circuit, a Compact Flash Card Data Logger, a rugged waterproof package and 4 C size Alkaline Batteries.  See the Data Sheet for complete details and features. (Supplied with 1 battery, 1 Serial Port Adapter and 1 512MB Flash Card).

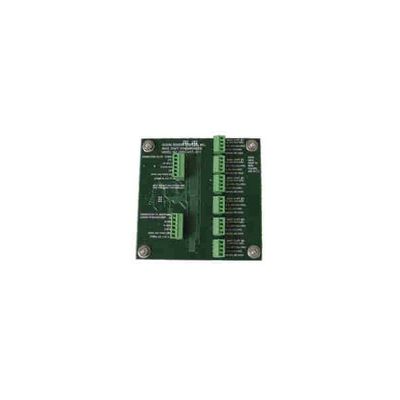

The OSSI-012-012 is the circuit board assembly without the enclosure.
