OSSI - Model RV OSSI-010-036 -Sonic Wave Sensor and Synchronized Sampling System

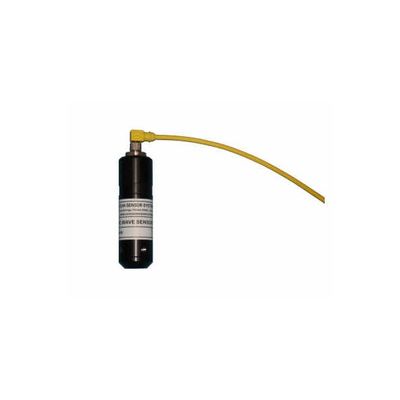

Sonic Wave Sensor RV OSSI-010-036: A Cabled Wave Sensor with Analog 0 to 5V, Serial RS232 or RS485 & Synchronized Sampling. The OSSI-010-036 Sonic Wave Sensor RV is a water level sensor that combines a rugged IP67 resistant to water submersion package, low power microprocessor and Anti-aliasing sensing circuit. The Sonic Wave Sensor RV has a range of 2.5 meters. See Sheet 2 Wave Performance for limitations. It is powered with any external voltage from 4.5 volts to 45 volts. There are 3 versions with different signal outputs. The OSSI-010-036-2 has a RS485 output and a 0-5V analog output. The OSSI-010-036-2 has a RS232 output and a 0-5V analog output. The OSSI-010-036-3 has a RS485 output. Laptops and PCs can easily receive the Sonic Wave Sensor RVs data using the RS232 or RS485 to USB Adaptors that are supplied.

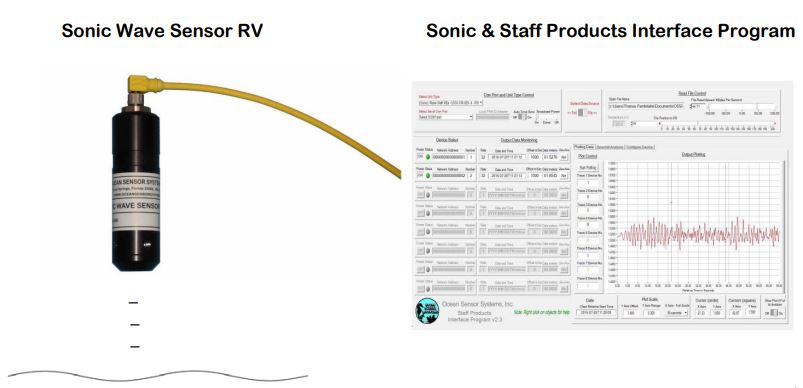

Time stamped data can be used to synchronize up to 8 Sonic Wave Sensor RVs. The Staff & Sonic Product Interface Program is available to down load from our web site to configure, display, analyze and store the sensor data.
- RS232 or RS485 and 0 to 5V analog outputs
- USB to RS232 or RS485 Adapter supplied
- 8 Sonic Wave Sensor RV’s per RS485 Network
- Measure Submillimeter Waves.
- Powered with voltages from 4.5V to 45V
- Automatic Anti-aliasing filter
- Sample Rates: 1, 2, 4, 8, 16 & 32
- Continuous Sampling or Burst Mode
- Data output Continuous or Buffered
- Data format: ASCII, Binary Float or Binary Integer
- Configurable Start Time
- Time Tagged Data
- Real Time Clock Auto Synchronizing
- Supply Voltage Monitoring
- 0.25% FS Accuracy 0-100% range
- Optional 0.1% FS Accuracy 0-100% range
- Automatic Calibration
- USB to RS485 serial Adapter with 5V @ 450mA power out: OSSI-585-003
- USB to RS232 serial Adapter with 5V @ 250mA power out.: OSSI-585-002
- Mounting Hardware: OSSI-015-018-B
- Supplied Cables with OSSI-036-1 and OSSI-036-2, RS485/RS232 and 0-5V analog: OSSI-515-004
- Cables options for Single unit. 10 Meter, R/A RS485 only: OSSI-515-005
- Cable options for Daisy Chain units, 10 Meter, RS485 only: OSSI-515-006
- Cable for Daisy Chain units, Male/Feamale 10 meters: OSSI-515-007
- Splitter RS485: OSSI-515-008
- Terminator, RS485: OSSI-150-008
