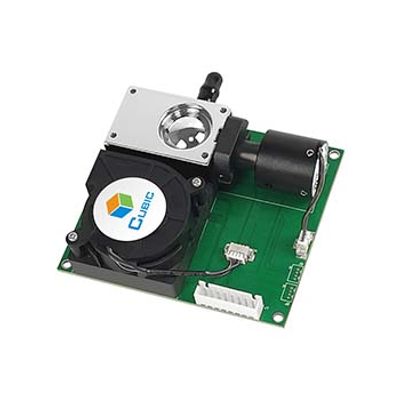

Wuhan Cubic - Model PM3006S/Heater -Outdoor Laser Particle Sensor

• Patented technology intelligent identification of dust source.
• Real-time output PM1.0, PM2.5, PM10 in μg/m3 at the same time.
• High accuracy, high sensitivity and quick response (≤8s).
• Better laser diode and fan with better performance, meet -30℃~70℃. working temperature, low noise. -40℃~85℃ working temperature sensor is also available.
• Longer lifetime with laser diode MTTF>88,000 hours.
• Superior accuracy in mass-concentration sensing, better accuracy in low mass-concentration sensing.
• Signal output optional: UART, I²C.
• Constant current sampling.
• With voltage regulator design and EMC compatibility, strong antistatic ability.

• Measurement particle: 0.3μm~10μm
• Measurement range: 0~30,000μg/m³
• Accuracy of PM2.5,PM1.0: 0~50ug/m3: ±5μg/m³; 50ug/m³~1000μg/m³: ±10% of reading
• Accuracy of PM10: 0~100μg/m³:±15μg/m³ ;100~1000μg/m³: ±15% of reading
• Reference instrument: GRIMM,METONE
• Condition: 25±2℃, 50±10%RH, Reference instrument: GRIMM,METONE
• Time to firstreading: ≤8s
• Response time: 1s
• Working condition: -30℃~70℃, 0~95%RH(non-condensing); -40℃~85℃ working temperature sensor is also available.
• Storage condition: -40℃~85℃, 0~95%RH(non-condensing)
• Power supply: DC 5V±0.1V; ripplewave<50mV
• Working current: <250mA (working); < 20mA (standby)
• Signal output: UART_TTL/IC (3.3V/5V)
• Dimension: W85*H74*D24.9 (mm)

Dust Monitoring System

Raised dust, as one of the main sources of airborne particles, contributes 40% proportion of PM10 composition. It is a remarkable pollution which is very harmful risk for human beings.

Micro-Monitoring Station

Particle concentration is the main indicator of air quality. High particle concentration may cause respiratory and cardiovascular disease or even lung cancer, which are harmful risks for human beings.

Meteorological Station

With fast development of economy,the consciousness of air pollution and air quality are also increasing, sinceit is highly related to each person’s health and life quality.
