InterOcean - Over-Boarding Sheaves

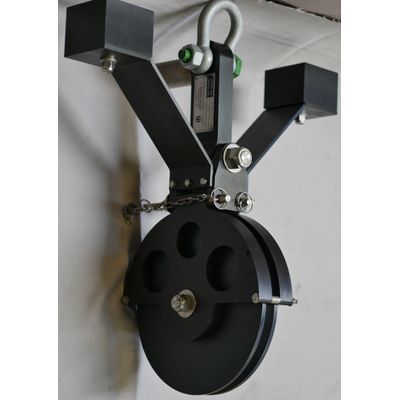

These sheaves are used as fairleads and cable supporters for marine applications which require wire or synthetic rope, electrical conducting or fiber optic data cable. The snatch block configuration permits rapid placement and removal of the cable without removing the payload or connector at the end of the cable. Aluminum and stainless steel frame construction and sealed marine-grade bearings are used for light weight, strength, and resistance to corrosion. The Series 800 Snatch Block over-boarding sheaves are available in several standard sizes and configurations including cable monitoring and display options (see Instrumented Sheaves).
