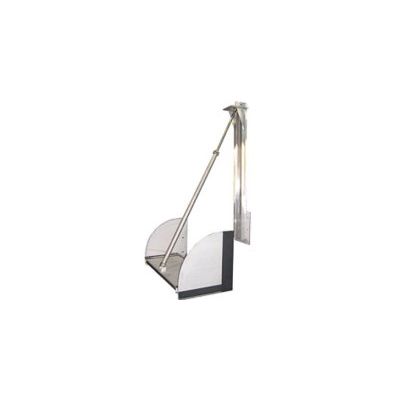

Overflow Weir
Size: 1000 x 150 mm up to 3500 x 1000 mm, sealing to 3 sides. For mounting with chemical anchor bolts and concrete.
Most popular related searches
Sealing performance
- Steady, very good sealing performance irrespective of water level.
- Waste water resistant sealing material.
Installation advantages
- Quick & easy mounting with few chemical anchor bolts and concrete.
Operation advantages
- Maintenance free.
- Perfect sealing performance in each intermediate position.
Corrosion resistance
- Maximum corrosion resistance due to stainless steel material, all acid bath cleaned and passivated.
Customisations
- Individual adaptation to special applications on request.
- Optional heatings in the side plates allow operation even in case of deep temperatures.
Areas of application
- For adjusting of water level over a short stroke.
Materials
- Frame: stainless steel 304 or 316Ti
- Sliding plate: stainless steel 304 or 316Ti
- Sealing: EPDM, waste water resistant or NBR
- Stem: stainless steel 304 or 316Ti
- Stem nut: GC-CuSn 12, bronze, seawater resistant
- Chemical anchor bolts: stainless steel 316Ti
