Oxford Filtration - Wedge Wire Elements - Wedge Wire Screens

Conical slot tubes, 57 to 137 diameter

• Designed specifically to allow higher flow rates in a number of various configurations.
• Higher surface areas by using filters inside filters, allowing more compact systems.
• Retrofitting into longer housings, allows the total length to be utilised, as the conical design has the effect of creating an even pressure along the length of the tube.
• If used in a backwash system, the even pressure allows better solids removal along the total length.
• A full combination of conicals and cylindrical slot tubes, and flow directions is available.
• Oxford Filtration can assist in designing a system to accommodate specific needs, including oval shaped slot tubes.

Continuous cylinders; from 24 mm diameter up to 260 mm diameter:

• These cylinders have excellent roundness, the support bars are wrapped around the outside, allowing uninterrupted flow along the longitudinal slots.
• We have a large range of slot widths and diameters, if you have a specific requirement, individual toolings can be manufactured.

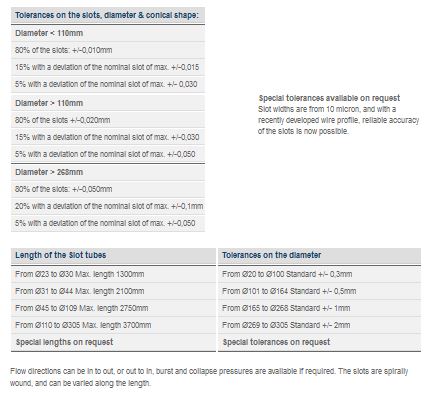

• Current range is from 10 micron, to 4 mm slot opening.

Quantities from 1 to 1,000+ can be supplied, our policy is to supply quality products at cost effective prices. Delivery times are dependant on if the products are from our standard or more specialist range.

Custom products can be designed and supplied, and due to recent investment in manufacturing, our range is continually under review for different requirements.
