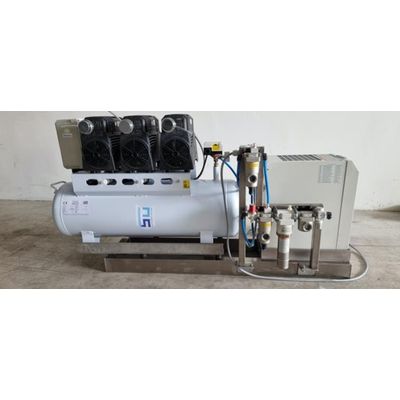

Puroxi - Model OXY -Oxygen Compressor
After the filtration from the compressor and air treatment, nitrogen is removed from the air, so pure oxygen of between 80 and 95% can be achieved. These percentage numbers depend on the filter bed`, where the nitrogen is removed from the air. Each project has its unique calculations and that is what makes this system extraordinary. The oxygen is then stored in a stainless-steel buffer vessel.
DO-unit dissolves the oxygen in water:
From the bu?er vessel from no.2, the oxygen is fed to the DO-unit, where the oxygen is dissolved in the water.
Solutions of up to 400% are easily achievable depending on the supplied water pressure.
In this D.O. unit, oxygen is proportionally added to the water, which means that the desired oxygen percentage can be entered on a screen.
This unit can be made as 1 phase 220-volt or 1 phase 110-volt 1 phase.
DO-unit dissolving the oxygen in water:

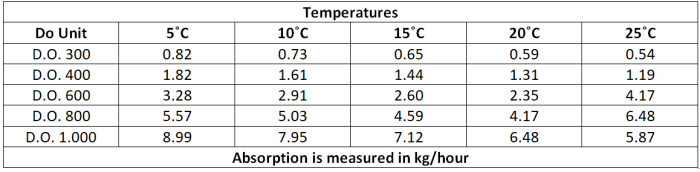

Oxygen absorption specifications for the units with the water at 2.5 bar and various temperatures.
