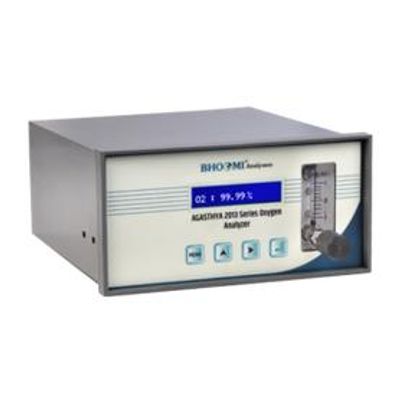

Agasthya - Model 2013 Series - BI 400 -Oxygen Purity Analyzer

FromBhoomi Process Management Pvt. Ltd.

SHARE

Agasthya 2013 Series BI 400 Purity Oxygen Analyzer measures Oxygen in percent level in process gas. For O2 measurement Electrochemical technology is used. Easy to maintain and service from user point of view. LCD & LED touchscreen display available. Analog 4-20 mA output with 2 nos. potential free relay contact. It has 4 different mounting configurations, Wall, Panel, Rack & Tabletop.

Most popular related searches

oxygen analyzer

flow regulation

oxygen monitoring system

oxygen generating

oxygen monitoring

process oxygen analyzer

32-Bit Cortex-M3 ARM Processor
Long life Electrochemical O₂ sensor
RS 485, supports MODBUS protocol
PTFE tubing and corrosion-resistant components for internal sample health
Flow meter for flow regulation

Method of Detection Electrochemial sensor for 02
Range Available 0-100% scalabte
Resolution 0.01%
Accuracy & Repeatability * 1% of FS
Drift < 2% of full scale per month
Response Time (T-90J £30 seconds
Display Touchscreen LCD »1£D
Power SO to 230 VAC SO Hz
Power Consumption 6 Wans
Digital Output RS485 with MODBUS Protocol
Analog Output 4-20 mA (max bad resistance upto 500 fl)
Relay Output 2 nos. of potential free contacts
Humidity S-95% RH
Ambient Temperature Range 4to50°C
Flow Meter 0,1-1 LPM
Enclosure Wall, Panel, Rack 6 Table Top
Sample Connection 1/4 inch S.S. Connection
Area Classification General Purpose

Oxygen Generator Plant
Hospital
Gas Manufacturer
Medical Oxygen
Steel Industries
Pharma
Oxygen Plant Manufacturer
