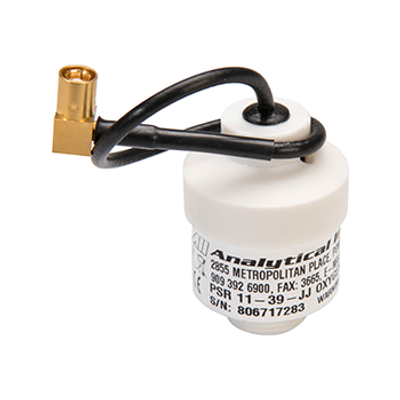

AII1 Analytical - Model SR-11-39-JJ -Oxygen sensor for JJ Rebreather
Analytical Industries Inc. (Aii) designs and manufactures galvanic oxygen sensors for both recreational and commercial divers. Each sensor undergoes thorough quality assurance and individual testing to guarantee its reliability and stability. We provide pressure and test data with every sensor, including end-of-line testing for stability at ambient conditions and 100% oxygen, as well as a 30" water column pressure test. Aii ship only "fresh" diving sensors directly from our factory in California, and are typically available for shipment within 24 hours. Aii scuba and rebreather diving sensors are manufactured in the USA.
Most popular related searches
Replacement sensor for:
- R-17JJ-CCR Sensor
Oxygen sensor for use in:
- JJ Rebreather "Retrofit"
- Signal Output: 11-13mV
- Measuring Range: 0-100% O2
- Response Time: 6 seconds to reach 90% of the final value
- Accuracy: ±2% Full Scale (FS)
- Humidity Range: Non-condensing, 0-99% RH
- Electrical Connection: 90º SMB Female on 5.25² cable
- Measuring Range: 0-100%
- Accuracy: +/-2% of Full Scale
- Signal Output: 11 - 13 mV
- Linearity: +/-2% of Full Scale
- Response T90: 6 sec
- Temp Coefficient: Compensated
- Operating Temp: 0 to 45°C
- Recommended Storage 0 to 25°C
- Qualified at: 1.8 ATA
- Shelf Life: 6 months
- Humidity Non-condensing: 0-99% RH
- Expected Life: 42 months
- Warranty: 12 months
- Electrical Conn: 90° SMB Female on 5.25" cable
