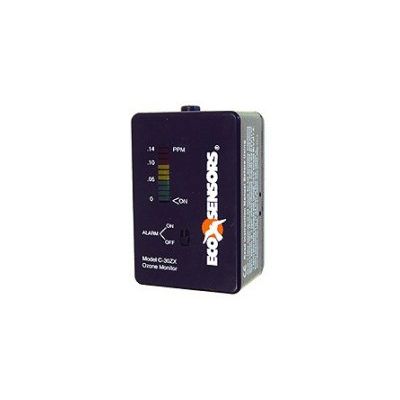

Spectrex - Model C-30ZX -Ozone Gas Monitor
The C-30ZX Ozone Monitor provides a reliable and inexpensive way of continuous monitoring for low levels of OZONE gas for water treatment plants, pulp bleaching mills, photocopier and laser printer centers, fumigation projects, indoor air quality systems, and wherever ozone exposure is possible. The C-30ZX has a very fast and continuous response, constantly monitoring your work environment.
Most popular related searches
indoor air quality system
ozone monitoring
data logger
air quality system
water treatment plant
indoor air quality
ozonation
semiconductor sensor
ozonator controller
ozone analyzer
- Constantly monitors your work environment; shows the ozone concentration by a multicolor graphical display, and alarms when there is a health hazard
- No installation typically required; easily understood by non-technical personnel
- Virtually no maintenance
- LED readout changes color as ozone level increases
- Audio alarm and output for data logger
- Connections for external equipment control
- For general monitoring and ozone control
- Many accessories available such as data loggers, calibrators, and protective enclosures with heaters and 4-20 mA outputs
- Range: .02-.14ppm of ozone (LED scale); .02-.30 ppm via external data readout
- Bargraph Display: Normally green; yellow at .05 ppm (caution); red at .1 ppm (danger)
- Response time: Within tenths of seconds of ozone reaching the sensor
- Measurement principle: HMOS (heated metal oxide semiconductor) sensor
- Size: 85 × 35 × 60 mm (3.25 × 1.375 × 2.375 in)
- Weight: 140 gr (5 oz)
- Power requirements: 12 VDC at 300 mA. AC adapters available worldwide.
- Outputs: LED bargraph, audio alarm, 0-3 V analog output such as for data loggers, and external alarm relay contacts; alarm actuation and relay contact closure at .1 ppm (standard) and is programmable.
