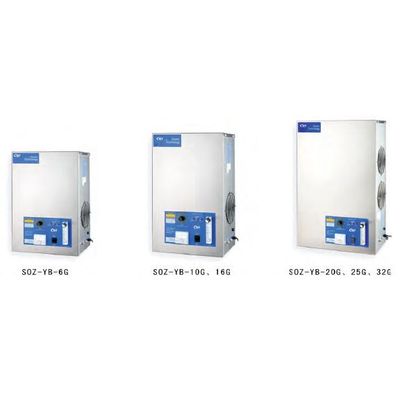

FG Water - Model SOZ Series -Ozone Generators for Industrial and Commercial Applications
The SOZ Series Ozone Generators by FG Water Technologies are engineered for rigorous industrial and commercial applications, utilizing advanced ozone generation technologies such as IGBT and modular power supply systems. These generators feature anti-backflow prevention and robust stainless steel housing, enhancing resilience and lifespan. Designed for continuous 24/7 operation, they feature automatic emergency alarms and shutdown functions to address issues like low ozone concentration, overheating, electric failures, or water backflow. Distinguished by high corrosion resistance and a low footprint, these generators operate efficiently with a high ozone output while consuming less energy compared to similar market options. Models range from standard to custom-built capacities up to 2000 g/hr, offering flexibility and advanced operational capabilities through features like air or oxygen intake options and dependable corona discharge technology.SOZ generators are made of high-quality materials and imported components from world famous brands. They are designed for continuous 24/7 operation and large-scale applications.
AUTOMATIC ALARM AND SHUTDOWN FUNCTIONS
1. Emergency alarm and shutdown in case of no ozone/low ozone concentration. System automatically stops if ozone concentration in the effluent drops rapidly or if ozone is not generated. Potential causes:
a) There is no air/oxygen supply;
b) Effluent gas pipeline is blocked or leaking.
2. Backflow alarm and shutdown prevents water backflow into the system which can cause significant damage to the equipment. Before restarting the system, check the pressure in the outlet line, and make sure that there is no water inside the generation chamber. Blow the system with dry air or oxygen to remove any remaining water if needed.
3. Overheating alarm and shutdown. Stops the system when temperature rises above 50 C. Automatically returns to operation when the temperature drops down. Potential causes:
a) Cooling fans failure;
b) High ambient temperature;
4. Electric circuit failure shutdown. Prevents equipment damage in case of short circuit or other electric problems.
- Modern design and patented technologies. Electrode is capable of operating at a very high voltages, 5-10 times more than normal levels; greater reliability and service life;
- Unique design prevents water backflow and stops the operation to avoid any damage;
- High corrosion resistance ensures long service life of the equipment;
- Stainless steel housing and strong reaction chamber guarantee the safe and stable operation;
- Low footprint and energy consumption; 20-30% lower than similar products on the market;
- Dual oxygen source – pure oxygen or dry air;
- High efficiency and high effluent ozone concentrations.
- Suitable for commercial and industrial applications; up to 2,000 g/hr capacity;
- Reliable concentric tube reaction chamber with air/oxygen intake options;
- Corona discharge generation principle; low energy consumption; high ozone concentration;
- Optional uninterrupted power supply and separate oxygen generator/air compressor;
- Medium voltage, high frequency and high gas feed pressure for better efficiency；
- Simple installation and operation.
Reaction chamber, stainless steel housing, ampermeter and voltmeter, gas flow meter, check valves and control valves, cooling system (for SOZ-6G to SOZ-32G – air cooling; for SOZ-40G and higher – water cooling is utilized).
