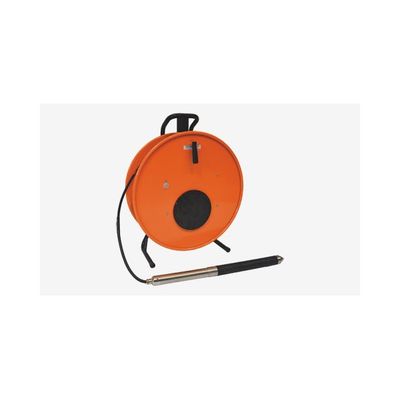

Geotomographie - Model SBS42 -P-Wave Borehole Source
The borehole source SBS42 generates compressional waves (P) in water filled boreholes. It is used for is used for P-wave tomography which is a standard method for high-resolution geological structure exploration between boreholes. P-waves are generated in one borehole and being transmitted to the other. P-wave tomography measurements are easy to analyze due to the easy recognition of the first arriving seismic waves. Sparker pulses are released through manual or automatic triggering of the impulse generator (IPG5000) controlled by the remote control unit (RCU). The seismic signals are highly repeatable.Most popular related searches
borehole
water borehole
seismic signal
borehole diameter
seismic
tomography
exploration borehole
geological exploration
well water
wave monitoring
The borehole source SBS42 generates compressional waves (P) in water filled boreholes. Energy released by the IPG5000 discharges through a coaxial cable terminated by two adjacent spark electrodes. The spark discharge vaporizes water by a high-pressure plasma. This generates vapour bubbles which expand and collapse, thereby generating high-frequency seismic waves.
Test showed that the P-wave sparker source SBS42 is highly repeatable up to frequencies of 4-5 kHz.
- Generated wave types: P
- Signal frequencies: Up to 5 kHz (depending on geology and borehole distance)
- Operational depth: Up to 400 m
- Source length: 645 mm
- Source diameter: 45 mm
- Source weight: 3.8 kg
- Cable weight per metre: 206 g
- Cable strength: 3400 N
- Borehole diameter: Min. 50 mm
- Clamping system: Not required
- Depth indicator: Cable marking every 2 m
- Connector: To Impulse Generator IPG5000
- Storage: On drum
