Biokube - Model Pluto -Package Wastewater Treatment Plants

• Height (mm) : 1,600
• Diametre (mm) : 1,000
• Weight (kg) : 180
• Weigth with water (kg) : 1000
• Power consumption (kwh/year) : 350
• Size of internal pump well (L) : 200
• Tank material : PP
• Piping material : PVC
• Oulet/sludge return pipe (mm) : 110/110
• Capacity (L/day) : 625-900
• Capacity, PE * : 5

* 1 PE = 60g BOD, 13 g Ntotal, and 2,5 g Ptotal, 125-180 L/day

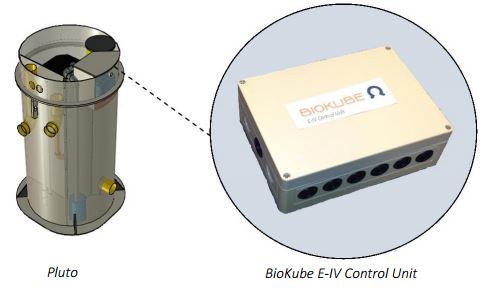

• All electrical component in the Pluto Unit; e.g. Blowers, pumps, UV Units , are integrated and connected to the BioKube E-IV control unit, from where the power is distributed and controlled.

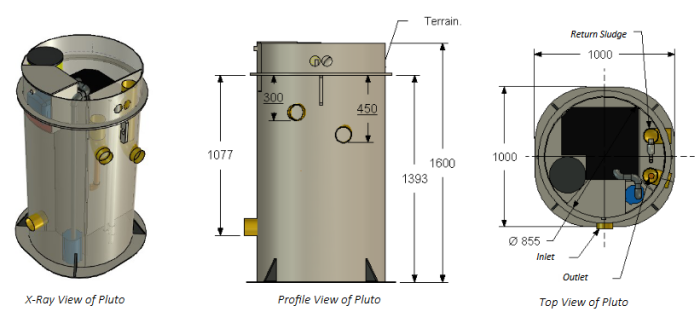

• The Control Unit is placed in the internal control room (see drawing).
• The plant is normally powered with 230 Volt, 1 phase power supply. The maximum current is 2.5
• Amperes depending on the number and size of components installed.
• Systems for 110V power supply regions can be supplied upon request.

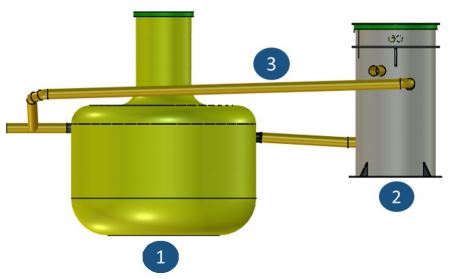

The Pluto Systems are typically installed in ground after a septic tank. The septic tank should be supplied locally from one of many standard suppliers. Alternatively it can be casted on site in concrete.

• Septic tank
• Pluto wastewater treatment plant
• Sludge return pipe

Backfilling

• The system requires to be installed on a level and compressed surface (e.g. gravel layer).
• When back-filling a 100 mm layer of gravel must be placed around the plant.
• The Pluto plant can also be installed above ground without any additional equipment.
• For more information see the installation manual
