BioKube Venus - Model 1850 -Package Wastewater Treatment Plants

BioKube E-III Control Unit

• All electrical component in the Venus Unit; e.g. Blowers, pumps, UV Units , are integrated and connected to the BioKube E-III control unit, from where the power is distributed and controlled.
• The Control Unit is placed in the internal control room (see drawing).
• The plant is normally powered with 230 Volt, 1 phase power supply. The maximum currency is 2.5 Amperes depending on the number and size of components installed.
• Systems for 110V power supply regions can be supplied upon request.

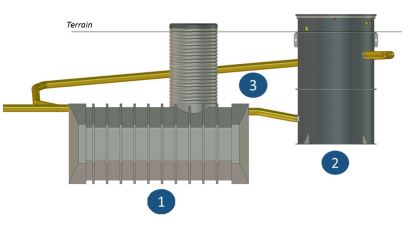

The Venus Systems are typically installed in ground after a septic tank. The septic tank should be supplied locally from one of many standard suppliers. Alternatively it can be casted on site in concrete.

1. Septic tank
2. Venus wastewater treatment plant
3. Sludge return pipe

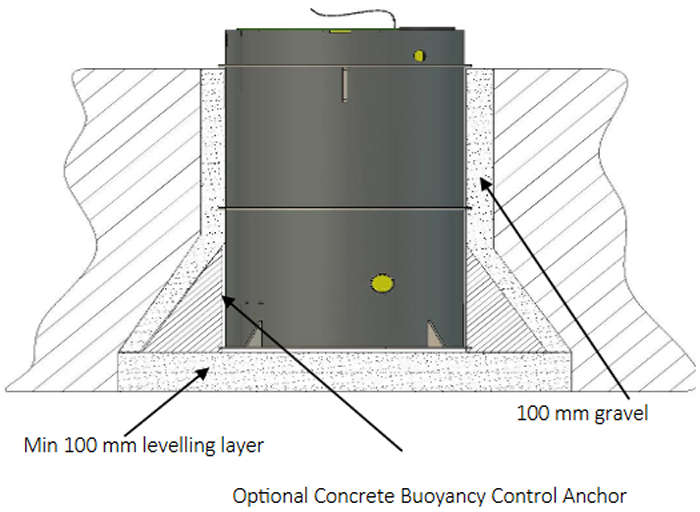

• The system requires to be installed on a level and compressed surface (e.g. gravel layer).
• When back-filling a 100 mm layer of gravel must be placed around the plant.
• In case of high ground water levels it is recommended to cast a buoyancy control concrete anchor around the bottom of the Venus plant.
• The Venus plant can also be installed above ground without any additional equipment.
