Elgin KEMTRON - Model 600HD2 -Packaged Fluid Recycling System
Within its class the KEMTRON 600HD2 has the highest rated hydraulic cleaning capacity at an impressive 600 gallons per minute (38 lps). Traditional systems offer single pass cleaning, while the KEMTRON 600HD2 features a multi-pass configuration, allowing each cut to be returned to the primary tank for continuous recirculation.
Most popular related searches
recycling system
centrifugal pumping
centrifugal pump
desanding hydrocyclone
vibration isolation
tank sensor
trenchless construction
noise control
submersible pump
hydrocyclone
This feature maximizes the shaker and hydrocyclone desilter cleaning performance. High / low level tank sensors maintain pump consistency with safety interlocks to prevent pumps from running dry when operated in ‘Cruise Control’ auto mode.
Looking for improved performance? Add a hydrocyclone desander to maximize cleaning efficiency while handling higher solids content with increased flow rates.
- Largest screen surface area, 56 sq. ft. (5.2 m2), outperforms competitors in sand and silt removal.
- Smart-Panel technology with Wi-Fi network for lowest cost operator oversight of any reclaimer in the industry.
- Hyper-G™ shaker with Firestone’s Marsh Mellow™ vibration isolators, providing reduced noise, long-lasting, maintenance free operation.
- New for 2020, pump performance is greatly enhanced with Elgin’s new rubber lined 250 series centrifugal pumps.
- Optional dual-motion, variable speed Hyper-G Shaker configuration improves performance when dealing with tough clays using balanced elliptical motion.
- Description: Six Panel, Dual-Deck Linear Motion Shaker with Desilter Manifold
- Screen Type: Pretensioned KPT-28 Series
- Maximum G-Force: 7 G’s
- Centrifugal Pumps: 3 x 4 250 Series (2) 20 hp, (1) 25 hp
- Vibratory Motors: (2) 2.4 hp (1.8 kW)
- Number of Screen Panels: 6 Panels (3 on top & 3 on bottom)
- Screen Surface Area: 56 sq. ft. (5.2 m2)
- Maximum Flow Rate*: 600 gpm (37.8 lps)
- Hydrocyclones: 8 qty 4” cones
- Dimensions: 32’ (9.7 m)L x 8’ (2.4 m)W x 9.75’ (2.9 m)H
- Weight: 29,760 lbs (13,498 kg) (Trailer Unit with Genset)
- Tank Capacity: 4,000 gallon (15,141 liters)

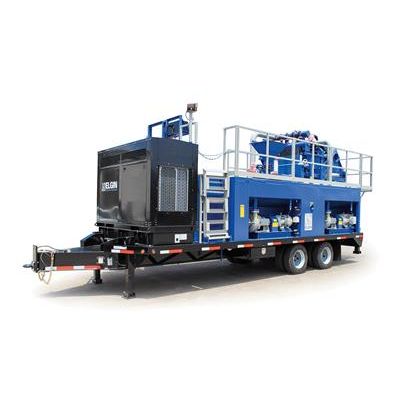

- Add a Trailer Mounted System - Add a 30,000 lbs (13,607 kg) rated triple-axel trailer with hydraulic jacks.
- Add a Generator Package - Add a 100 kW diesel generator to provide local electrical power for the shaker and all pumps with an on-board diesel tank. Sound attenuated generators also available.
- Add a Submersible Feed Pump - Add a 500 gpm (31.5 lps), 10 hp, submersible feed pump to the system to deliver fluid to the recycling system.
- Explosion Proof Configuration - Add a NEMA 7 explosion proof control panel. Replace all vibrator and pump motors with explosion proof motors. Explosion proof generator packages not available.
- High-G Motors - Upgrade shaker motors to a 2.5 hp High-G vibrator motor capable of achieving 7 G`s of force.
- Add a Winterization Package for harsh environmental conditions. KEMTRON Technologies has an in-house engineering department capable of customizing your system to meet any harsh weather needs.
