Grant - Model OMK610 -Paint Oven Profiling System
Everything you need for paint oven temperature profiling and paint cure calculations in one easy to use and convenient system. Having over 40 years experience in the manufacture of oven recorders for the coatings industry, Grant has designed the latest OMK610 kits to boast many new features to assist in production quality control and reducing operating costs.
- Enhanced thermal barrier giving maximum protection - now available with a heat absorbing insert
- New fast response probes for both air and surface temperature
- PaintView data storage, report generation and analysis included
- Up to 6 temperature channels, storing up to 250,000 readings

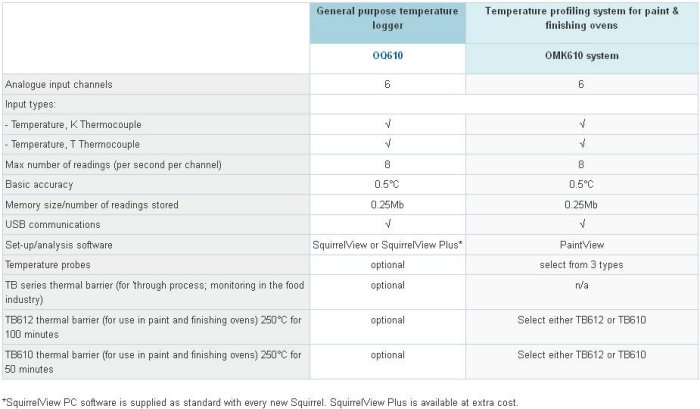

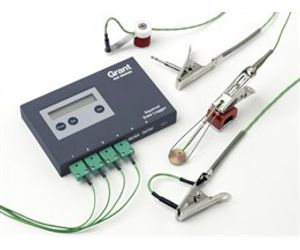

Three OMK610 kits are available based on the OQ610 data logger, each come with PaintView software, thermal barrier, carry case and a quick start guide. A choice of temperature probes available for the OMK610-NP and OMK610 HS kits or choose the OMK 610 KIT1 which includes a set of 6 multifunction combined magnetic / clamp probes for air or surface temperature.
Stock codes
OMK610-NP
OQ610 logger with thermal barrier allowing operation to 250°C for up to 50 minutes - order probes separately
OMK610 HS
OQ610 logger with enhanced thermal barrier allowing operation to 250°C for up to 100 minutes - order probes separately
OMK610 KIT1
OQ610 logger, with enhanced thermal barrier allowing operation to 250°C for up to 100 minutes, USB connection cable, light weight carry case, Getting Started guide and PaintView software with CAL610 Calibration Certificate and 6 x TC-K-N3-3 combined magnetic/clamp probes for both surface and air temperatures.
Benefits of using the OMK610 kits
- Meets paint manufacturers` specified cure parameters
- Maintains a specified level of cure ensuring repeatable quality
- Maximises oven usage and throughput
- Optimises oven running (energy) costs
- Archives data and results as part of any quality control system or supplier audit trail
- Line operators can use it without the need for a PC
Features
- The Squirrel OQ610 can record up to eight readings per second from each sensor and store up to 250,000 readings in its memory
- Small, robust thermal barrier can now accept a stainless steel heat sink, which greatly extends the system performance (TB612)
- At the end of the recording run, data is downloaded directly to PC for analysis and reporting using PaintView software
- Up to 6 K-Type temperature probes can be connected to the logger. These probes can be clipped on to non-magnetic components or via a magnet
- Configure the OQ610 logger for all oven applications
- Clear Multilanguage LCD screen indicates cure % at the end of the cycle (English, German, French, Spanish and Italian)
- Create paint cure data libraries (by manufacturer and / or paint type)
- Set optimised cure temperature curves with upper and lower limits
- Create graphical and statistical data reports via the Report Wizard, incorporating company logos and JPEG photographs
- The Squirrel OQ610 can record up to eight readings per sgrant-012.jpgecond from each sensor and store up to 250,000 readings in its memory
- Small, robust thermal barrier can now accept a stainless steel heat sink, which greatly extends the system performance (TB612)
- At the end of the recording run, data is downloaded directly to printer or to PC for analysis and reporting using PaintView software
- Up to 6 K-Type temperature probes can be connected to the logger. These probes can be clipped on to non-magnetic components or via a magnet
- Configure the OQ610 logger for all oven applications
- Clear Multilanguage LCD screen indicates cure % at the end of the cycle (English, German, French, Spanish and Italian)
- USB On The Go - the logger can print out a concise, graphical report of each run directly via USB, without the need for a PC
- Create paint cure data libraries (by manufacturer and / or paint type)
- Set optimised cure temperature curves with upper and lower limits
- Create graphical and statistical data reports via the Report Wizard, incorporating company logos and JPEG photographs

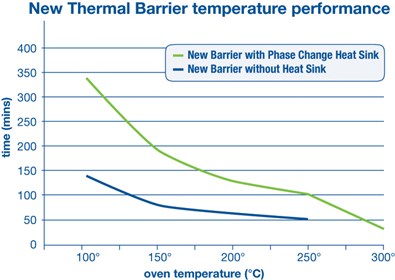

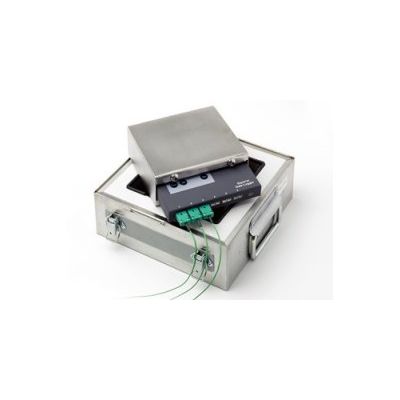

Thermal barriers are insulated containers designed to keep heat out so that the Squirrel data logger inside remains at a safe operation temperature for a specified duration. Grant offers a wide range of thermal barriers with different time/temperature specifications.
- Provides protection to Squirrel data loggers when used in high temperature oven profiling applications (static or conveyor)
- A range of standard and customised models with different performance characteristics
- Made from stainless steel, for years of use
- Barriers available for very high temperature applications - manufactured to order
- Suitable for applications in food, powder coating, stove enamelling, ceramic, kiln and furnace
- Can be constructed using special phase change material for added protection for very high temperature applications.
Thermal Barriers are available in standard sizes or can be customised to suit your specific requirements. For customised barriers we require details of your application, oven aperture size and expected worst case temperature profile.

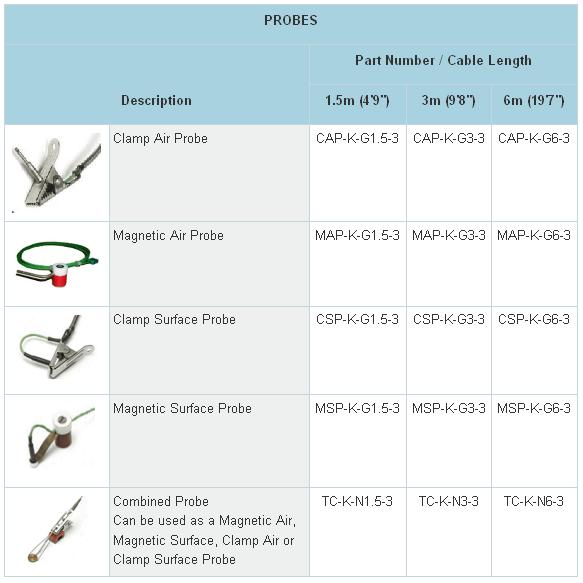

Probes for use with the OMK610 Oven Logger Kit
A wide range of K-Type temperature probes is available with a choice of 1.5m (4`9"), 3m (9`8") or 6m (19`7") cable lengths. The OMK610 can be used with a combination of up to 6 probes simultaneously.
- Perfect contact between probe and surface
- Low mass and optimised shape to avoid influence on temperature of the sample
- Extremely strong, highly flexible and easy to clean Teflon® coated cables
All probes have a continuous maximum temperature of 250ºC (428ºF).
