- Driven by servo motors
- Low operating costs
- High quality
- Fully automatic changeover between different palletizing patterns
- Pallet magazine may be refilled during operation
- Automatic pallet magazine for loading empty pallets
- Fully automatic palletizing
- High throughput
- Low noise level
- Up to four layers per minute
- Operationally reliable
Sealing System A/S
- Home
- Companies
- Sealing System A/S
- Products
- Sealing System - Model IP-4 - ...

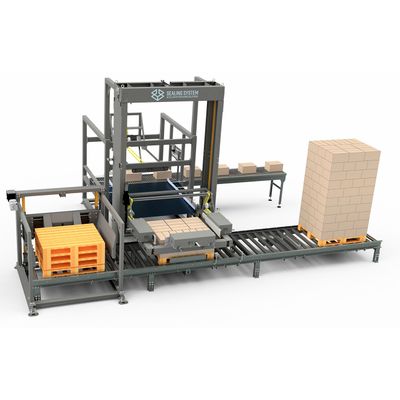

Sealing System - Model IP-4 -Palletizer for Automated Material Handling
The Sealing System IP-4 Palletizer is designed for continuous 24/7 operation with minimal maintenance requirements. It represents a new generation of fully automatic palletizers, setting high standards for precision handling and cost-effective operation. The device employs servo motor-controlled head movements, which help maintain low maintenance costs. High-performance quality timing belts enhance reliability and operational efficiency, while reducing noise. The palletizer handles various packaging forms including cardboard cases, plastic boxes, and film-wrapped items. It has a throughput of up to four layers per minute and can be adapted for multiple production lines. The user-friendly interface facilitates the easy configuration of new patterns and performance monitoring with graphical error display, reducing downtime.
Most popular related searches
IP-4 is a new generation of fully automatic palletizers
The IP-4 Palletizer sets new standards for handling accuracy and operating cost control. The palletizer head movements are controlled by servo motors, which ensures minimum maintenance costs. Quality timing belts ensure what is probably the highest performance and operational reliability on the market – as well as extremely low noise levels.
The machine will handle all commonly used packaging types such as cardboard cases, plastic boxes, open trays, film-wrapped items, lid/bottom packaging, etc.
The IP-4 Palletizer has a throughput of up to four layers per minute. As an option, the palletizer can be extended to allow several production lines to use the same palletizer.
Thanks to the user-friendly operating panel, the operator can easily set up new palletizing patterns and modify existing patterns. Furthermore, any error condition will be shown graphically on the display panel, thereby minimizing stop times.
- Pallet dimension:
- 1/1 Chep-pallets 1.000 × 1200 mm
- 1/1 EUR-pallets 800 × 1200 mm
- ½ EUR pallets 800 × 600 mm
- Pallet magazine: 10 pallets (Automatic)
- Product sizes: Min. L 120 × W 120 mm × H 80 mm
- Max. L 600 × W 500 m × H 450 mm
- Noise level: < 80 dB (A) (product-dependent)
- Throughput: Up to four layers per minute
- Max. weight per pallet: Up to 1,500 kg per pallet (incl. the pallet)
- Full pallet height: Standard max. 2,000 mm (incl. the pallet)
- IP-4 – Options: ¼ plastic pallets 400 × 600 mm, includes extra pallet magazine. Fully automated mounting of four ¼ pallets on one EUR pallet.
