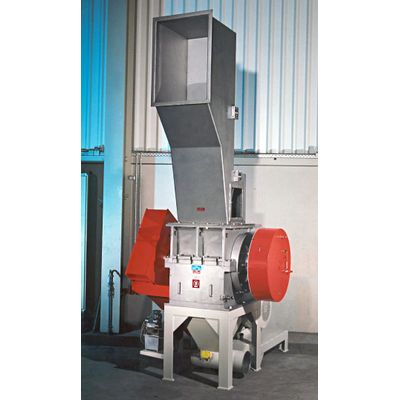

Pallmann - Model PS -Single-Step Rubber Size Reduction Knife Mill
The Knife Mill, type PS is used for single-step size reduction of different types of rubber that are easy to shred, such as NBR, SBR and EPDM in standard bale size. The rubber can be cut into granule sizes smaller than 10 mm. This increases dissolving- and mixing times. Due to the flowability achieved, the material is easy to convey and can be fed via automatic weight dosing. Continuous manufacturing processes are thereby achieved.
For the special size reduction of natural or synthetic rubber bales, vulcanized or unvulcanized, , Pallmann supplies knife mills, type PS with unique guillotine rotors. These rotors stand out due to high rotor inertia and low friction grinding. Depending on the bale size, Pallmann offers size reduction systems for single- up to two-step size reduction. These systems are available with or without metering systems and size reduce any type of rubber, such as bales, sheets, strands or chips into defined granules.
- Special guillotine rotor with open design and a high moment of inertia
- Feed trough with pendulum flaps for guided material feeding and dosed material intake
- Upper part of the housing opens hydraulically for quick and thorough cleaning and knife exchange
- Material feeding either manually or by means of a conveyor belt
- Particle size is determined by the size of the screen perforation
- Pneumatic suction device to transport the end product and the resulting heat
- High throughput rate
- Low-friction and therewith temperature-gentle size reduction
- Besides rubber bales, other types of rubber waste such as seals, cable insulation etc. can be size reduced
- Sturdy construction – designed for continuous operation
- Hydraulic guillotine integrated in the feed trough for precutting of large rubber bales
- Machine is also available for two-step preparation in case of special requirements
- Dosing system for separating agents available for especially hard to size reduce types of rubber
- Sound insulation available
