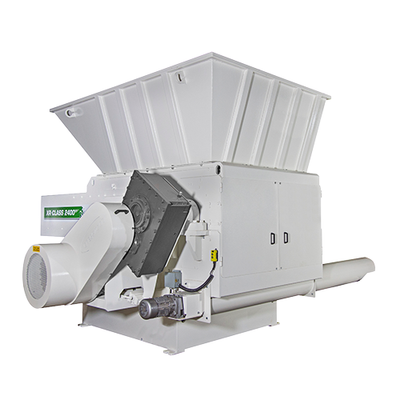

Cresswood - Model XRV2400 -Paper Recycling Machine
FromCresswood
Common Applications: Paper Recycling, Printing Paper Waste, Secure Information Destruction.
Most popular related searches
paper recycling system
paper recycling
paper waste
printing waste
waste paper
cutter shaft
waste destruction
- Replaceable Anvil Supports and Side Wall Rotor Seals
- Easy Service Access, V-Rotor Cutterhead Yields Maximum Output
- Hydraulic Screen Carriage
- Extreme Duty Gear Box
- Drive Train Protection System
- Fluid Clutch
- Rugged Steel Frame
- Zero Gap Ram™ Wide UHMW Side & Bottom Bearing Guide Plates
- Single Cylinder with Linear Alignment Coupler, Prevents any Side Load of Cylinder
- Optional Precision Machined Grooved Bed Plate with Ram Track™ Guide
- Motor HP: 25, 30
- Cutting Chamber: 30″ x 39″
- Ram Stroke: 25″
- Rotor Diameter: 10″
- Grinding Head Speed: 50-150 rpm
- Frame Thickness: 5/8″
- Number of Cutter Teeth: 36
- Shaft Diameter: 4″
- Mid-Range Hopper Volume: 1.5 Cubic Yards
- Floor Area of Unit: 66″ x 89″
- Shipping Weight: 5,700 lbs.
* Specifications are subject to change
** The output of these machines can be optimized for your application by selecting different screens, amount of cutter teeth, cutter teeth placement, and rotor selection”
