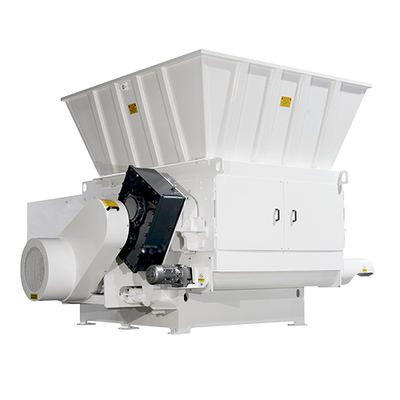

Cresswood - Model XRV700 -Paper Recycling Machine

• Screen Sections for Easy Handling
• Optional Hydraulic Screen Carriage
• Replaceable Anvil Supports and Side Wall Rotor Seals
• Optional Grooved Bedplate
• Drive Train Protection System
• Easy Service Access
• V-Rotor Cutterhead Design Yields Maximum Output
• Fluid Clutch
• Rugged Steel Frame
• Ram Track™ Guide System

• Motor HP: 125, 150, 200
• Cutting Chamber: 70″ x 69″
• Ram Stroke: 50″
• Rotor Diameter: 20″
• Grinding Head Speed: 50-150 rpm
• Frame Thickness: 5/8″
• Number of Cutter Teeth: 98
• Shaft Diameter: 20″
• Mid-Range Hopper Volume: 5.7 Cubic Yards
• Floor Area of Unit: 130″ x 143″
  Shipping Weight:  20,000 lbs.

* Specifications are subject to change

** The output of these machines can be optimized for your application by selecting different screens, amount of cutter teeth, cutter teeth placement, and rotor selection”
