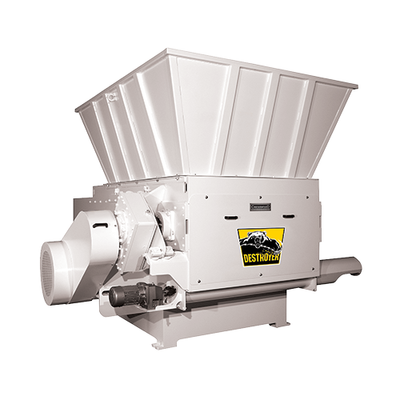

Cresswood - Model XRV600 -Paper Recycling Machine

• Easy Service Access
• V-Rotor Cutterhead Design Yields Maximum Output
• Screen Sections for Easy Handling
• Replaceable Anvil Supports and Side Wall Rotor Seals
• Optional Grooved Bedplate
• Drive Train Protection System
• Fluid Clutch
• Rugged Steel Frame
• Ram Track™ Guide System

• Motor HP : 75, 100, 125
• Cutting Chamber : 60″ x 78″
• Ram Stroke : 60″
• Rotor Diameter : 16″
• Grinding Head Speed : 50-150 rpm
• Frame Thickness : 3/4″
• Number of Cutter Teeth : 84
• Shaft Diameter : 16″
• Mid-Range Hopper Volume : 5.6 Cubic Yards
• Floor Area of Unit : 100″ x 159″
• Shipping Weight :  16,500 lbs.

* Specifications are subject to change

** The output of these machines can be optimized for your application by selecting different screens, amount of cutter teeth, cutter teeth placement, and rotor selection”
