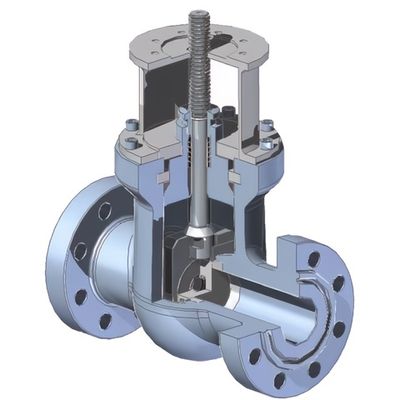

Valland - Model B11 -Parallel Slab Gate Valves
FromValland S.P.A.
Applicable standards: API 6D, API 6DSS and API 6A. Design according to ASME B16.34 or ASME VIII Div. 1 & 2. Pressure Class Range: ANSI Class 150 lbs. to 4500 lbs. API6A Class 3000 PSI to 20000 PSI. Size Range: API 6D - from 1/2" to 42". API 6A - from 1.13/16" to 13.5/8".
Most popular related searches
gate valve
parallel gate valve
fugitive emissions testing
slab gate valve
pressure seal
fire test
fire testing
valve operator
emissions testing
fugitive emissions
- Ends design:
- Flanged (RF/RTJ) - ASME B16.5, ASME B16.47 or MSS SP-44
- Flanged (6B/6BX) - API 6A
- Compact (Norsok Standard L-005)
- Butt-Weld (ASME B16.25) and/or Butt-Weld + Pipe
- Hubbed according to client Clamp
- Special client`s requirements
- Body Design: Single piece
- Bonnet Design: Bolted bonnet or Pressure Seal Type
- Seat design:
- Non floating (without soft gasket)
- Metal to Metal (c/w hardfacing)
- Valve operation:
- Manual: Handwheel or Gearbox
- Actuated: Pneumatic / Hydraulic / Electric / Electro-Hydraulic
- Available Materials: CS, LTCS, SS, Duplex SS, Super Duplex SS, 6Mo, Inconel, Incoloy, Hastelloy, Monel, Titanium NACE MR0175 according to client request.
- Additional Features: Double Block and Bleed, Normal of Reverse acting, Graphite or V-Pack stem sealing arrangement
- Testing and Certification:
- Testing: Hydrostatic, High Pressure Gas, Pneumatic and Functional
- API 598 - API 6A PSL3G, API 6A PR2 & Endurance
- Fire testing: API 6FA, API 607, BS 6755 part 2, ISO 10497
- Fugitive Emission Test: ISO 15848 - 1 & 2
- SIL Certificate up to SIL 3
- PED 2014/68/UE Mod.H
