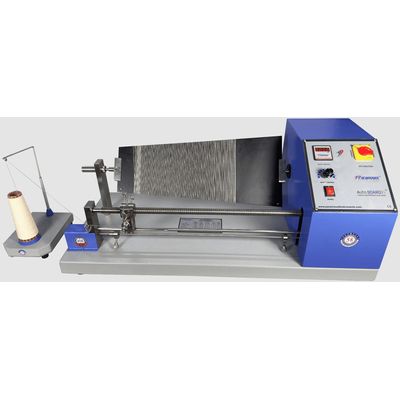

Paramount i9 - AutoBoard (Motorized)
Visual determination of unevenness along the length of a yarn is carried out by wrapping it in equally spaced parallel wraps over a board and comparing the appearance of irregularities against STANDARD RATING PHOTOGRAPHS. As the yarns of different thickness are to be assessed, the spacing between the wraps is suitably selected so as to give a clearly distinguishable Pattern.
PARAMOUNT AutoBOARD i9™ (Motorized ) is advanced equipment to wrap all types of yarns on tapered/ parallel board to analyse and grades yarns. The lead screw is provided parallel to the axis of the boards which gives the motion to the yarn for equal spacing and a tensioner device is provided to give tension to the yarn.
The equipment has six step pulleys, so that the winding pitches can be varied to suit the count of yarn to be wrapped. It has an electrically control drive which stop automatically when the yarn reaches at the end of the board. The equipment gives the result as per ASTM Standard D2255. The equipment is mounted on a rigid base finished with Metallic Blue P.U paint. The other parts are made of S.S for long life trouble free operations.
Calibration Certificate
Supplied complete with Calibration Certificate (Traceable to NPL).
Advanced Equipment
Advanced Equipment to determine the Evenness, Hairiness, Naps & Other Imperfection in a sample of Yarn
Motorized Model
Specially Designed Motorized Model.
Accommodate All Size Bobbins
Bobbin Holding Stand, which can accommodate All Size Bobbins.
Electrically Control Drive
Electrically Control Drive Which Stops Automatically.
Three Phase Gear
Special three phase geared induction motor for very long life.
Accurate and Precision
Accurate and Precision, Programmable Micro speed controller unit.
ASTM Standard D2255
As per ASTM Standard D2255
Dual Yarn Wrapping Boards
Dual Yarn Wrapping Boards Tapered/Parallel Board.
Complete with All Accessories
Complete with all Accessories including, Bobbin Stand, Tapered/ Parallel.
Inspection
Boards User’s Manual with Inspection and Calibration Certificates.
Size of Tapered Board: 575 x (250 x 160 ) mm
Size of Paralleled Board: 575 x 250 mm
Standard Yarn Spacing: 20, 22, 26, 32, 38 & 48 Per Inch. 8, 9, 10, 13, 15 & 19 Per Cms.
Electrically Operated: Motor Drive having fine Gear’s with Reverse/ Forward
Geared Motor: Special Three Phase geared induction motor.Very long life
Speed Controller (Variable): Accurate and Precision, Programmable Micro Speed Controller Unit.
Over all Dimension of the Instrument: 920 (L) x 395 (W) x 350 (H) mm 36” (L) x 15.5” (W) x 14” (H) Inch
Net Weight of the Instrument: 32 Kg. (70.4 lbs)New Text
