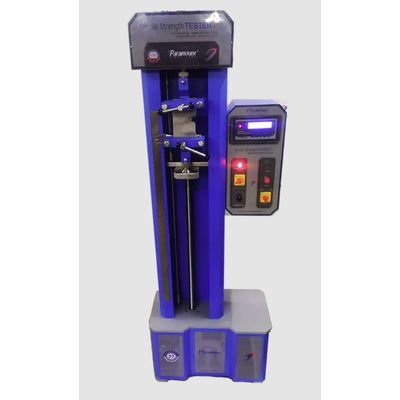

Paramount i9 - Tensile Strength Tester (BASIC MODEL)

Paramount Tensile Strength Tester i9™ (DIGITAL) is an ergonomically designed advanced equipment which works on the constant rate of elongation (CRE) principle. The sample is held between two jaws, the lower one is a stationary jaw while the other is made to move at a preset speed with the help of special geared motor and advanced programmable electronic drive (speed can be variable from 50 to 400 mm per minute). The load exerted on the movable jaw is sensed by a sensitive sensor connected with load cell which directly indicates the load in digital form in kgf. The result of elongation is indicated directly in digital form (mm) with the help of optical sensor.

The equipment has an in-built provision for safety arrangement. It has a provision to prevent over travel of the moving jaw. It has an in-built line filter arrangement to check any fluctuations in power supply so that it does not have any effect on the result generated, thereby giving accurate result. The frame of the tester is fabricated from heavy mild steel section to give the rigidity and strength. The exclusive feature of Tensile tester is its control panel that houses all the controls and is very user friendly and easy to operate due to its convenient location .The equipment is finished in special blue & grey powder coated paint. The other parts are made with Stainless-Steel to give a corrosion resistant long life finish.

1. Next Generation equipment designed to Test Wide Range of materials including Fabric , Garments, Leather, Footwear, Paper, Packaging material, films, foils, plastics, adhesives, Non-woven, Food, Toys, Medical devices etc. to undertake various Tests of Tensile, elongation, breaking strength, Compression, Tear, and peel bond etc.
2. Sturdy and Robust construction with precision leadscrew and Ball Bearings.
3. Maximum capacity 500 kg with 100gm accuracy, works on CRE principle.
4. Microprocessor based control with digital tensile and digital elongation display.
5. Variable Speed Control from 5 0 t o 40 0 mm per minute by Programmable VFD.
6. Control Panel has Peak & Zero setting option.
7. Supplied with 1” jaw (Grab Test), 4” jaw (Strip & Seam Slippage Test) and Lea Strength Jaw.
8. Grips and fixtures can be easily mounted securely with a simple locking pin.
9. Maximum jaw separation 800 mm & minimum jaw separation 25mm.
10. Supplied Complete with all accessories Including Templates for preparing samples for Testing.
11. Power :220/ 230 V, Single Phase, 50 Hz AC.
12. Supplied with inspection & calibration certificates (Traceable to NPL).

Capacity: 0 - 500 kg
Sensitivity: 100 gm (0.1 kg)
Speed of Machine: 50 to 400 mm / minute
Minimum jaw separation: 25 mm
Maximum jaw separation: 600mm
Motor: ½ HP, Single Phase, 230 + 10% AC Supply.
Load measurement: Digital
Elongation measurement: Digital Elongation display in mm and also Calibrated stainless steel scale with sharp pointer indicating continuous elongation.
Movement controls: Push switch for START, RESET and function.
Overload protection: Micro switches for over-travel protection.
Overall dimensions of the unit: LENGTH x DEPTH x HEIGHT, 670mm x 380mm x 1870mm, 26.3” x 15” x 73.6”
Net weight of the unit: 150 kg (330 lb)
