PAMAS - Model OLS4031 -Particle Counters With 32 Size Channels

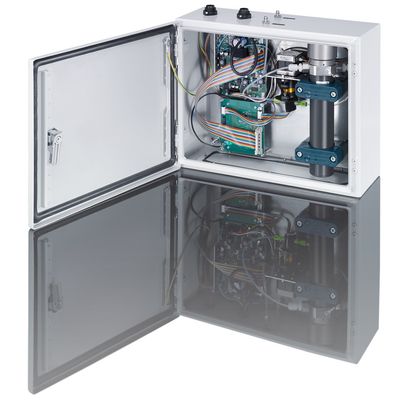

The online particle counter PAMAS OLS4031 emerged from the standard particle counter PAMAS S4031. The standard shell is made of coated steel. For Phosphat-Ester applications, the PAMAS OLS4031 is manufactured with a special stainless steel shell that protects the housing from corrosive liquids. The integrated stepper-motor-driven pump guarantees a constant flow. The PAMAS OLS4031 online particle counter is equipped with 32 size channels.
Most popular related searches
particle counter
hybrid stepper motor
particle sensor
particle monitoring
corrosive liquid
facility monitoring system
industrial testing
particle analysis
particle analyzer
volumetric analysis
The PAMAS OLS4031 is used in monitoring facilities systems in the aircraft industry, in test rigs for parts cleanliness and in production test lines.
- Low pressure (standard version): 0 to 6 bar - online mode
- High pressure (available on request): 3 to 420 bar - online mode
- Up to 200 cSt
- Pressurised up to 350 cSt
Nominal flow rate: 25 ml/min, maximum particle concentration: 24.000 p/ml at a coincidence quote of 7.8%
PAMAS PMA: Particle Measuring and Analysing Software
