NANOCHEM - DOC - Particle Filter

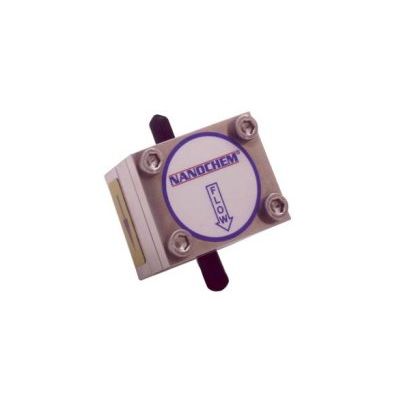

The NANOCHEM DOC filter is an ultra-high purity particle filter that also functions as a mounting station for optional NANOCHEM BLOC Purifiers. Accepts 50, 100 and 200 ml field interchangeable and replaceable BLOC Purifier canisters. Particulate filtration in a foot-print of only 2.11 inches (53.6 mm) with tube connections and 3.31 inches (84 mm) with VCR*-compatible face seal connections. All metal parts, Type 316L VIMWAR stainless steel or Nickel 200. All metal Z-Seal between body pieces.
Most popular related searches
- Filtration for all applications from source to point-of-use
- Enhances manufacturing process economy and improves equipment performance
- Versatile and upgradeable design
- Acts as stand-alone particulate filter
- Allows future installation of BLOC purifier
- No moving parts or power requirements
- Low Overall Cost of Ownership
Specifications
- Recommended flow rates up to 20 slpm
- 0.003 urn particle filter with 99.9999999% retention
- Internal surface finish < 15 pin Ra
- Maximum allowable working pressure of 150 psig (1.14 MPa)
Connections
- Male inlet and outlet 1/4 inch, VCR-compatible face seal fittings
- 1/4 inch tube stub connections for welded applications
