Pasco - Model NK Series - Rack & Pinion Type - Pneumatic Actuator - Material in Aluminum / 304SS / 316SS
Indicator: A position indicator with Namur mounting is standard on all PASCO pneumatic actuators for mounting accessories. Pinion: The hardened alloy steel pinion is precision ground and Nickel plated (over 15um) in order to reduce friction, provide maximum wear resistance. Full conformance with the newest standards of ISO5211 & DIN3337. The dimensions can be are factory lubricated customized and as options, stainless steel and aluminium alloy are also available.
A position indicator with Namur mounting is standard on all PASCO pneumatic actuators for mounting accessories.
The hardened alloy steel pinion is precision ground and Nickel plated (over 15um) in order to reduce friction, provide maximum wear resistance. Full conformance with the newest standards of IS05211 & DIN3337. The dimensions can be customized and as options, stainless steel and aluminium alloy are also available.

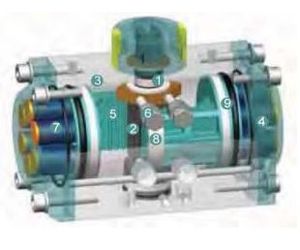

3. Actuator Body
The aluminum extrusion is hard anodized(over 30um) to protect against wear and corrosion while reducing piston friction to the absolute minimum. Other options such as Nickel, Ceramic, PTFE, Polyester coated are available.
4. End Caps
Epoxy coated(over 80um) die cast aluminum end caps provide maximum resistance against potentially corrosive elements. Other treatments such as Nickel, Ceramic, PTFE, Polyester coated are available.
The precisely-balanced and hard anodized treatment (over 30um)die cast aluminum pistons are fitted with high quality rings and guides. The twin rack and piston design creates a constant torque output on all actuators.
6. Travel Adjustment
The standard adjustment is ± 5°in both the open and closed positions through easily accessible external adjustment bolts.
7. High Performance Springs
The high tensile steel springs are coated with Epoxy coated for corrosion resistance and longer service. The pre-loaded springs can be safely & rapidly disassembled.
8. Bearings & Guides
The highly durable compound material provides high trust stability with minimum friction and long life.
NBR O-rings provide trouble-free operation at standard temperature ranges. Viton and HNBR O-rings are available for high or low temperature applications.
1. Pressure Ranges
2 bar(29 psig) to 8 bar(116 psig) double acting
3 bar(44 psig) to 8 bar(116 psig) spring return
2. Temperature Ranges
- Std.(NBR O-rings): -20°C (-4°F) to +80°C (+176°F)
- Lower Temp. (HNBR O-rings):-40°C (-40°F) to +80°C (+176°F)
- High Temp. (Viton O-rings): -15°C (+5°F) to +150°C (+300°F)
Note: Special grease is required for low and high temperature service condition.
3. Wide Range Available
The actuator range consists of 14 sizes, with torques from 9Nm(80in.lbs) to 3,920Nm (34,660in.lbs) at 6 bar (87 psig) air supply.
4. Operating Media
Filtered dry or lubricated air for noncorrosive gas, water or light hydraulic oil. The maximum particle size must not exceed 30 microns.
5. Stroke Adjustment
0°and 90° with standard adjustment ± 5°.
All moving parts are factory lubricated for entire life cycle of actuator.
Twin piston rack and pinion actuator design, suitable for indoor and outdoor installation.
Bottom drilling complies with ISO 5211/DIN 3337 to match valve. Interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE-3845, NAMUR standard.
Every actuator is hydraulically tested, certified and guaranteed for a minimum of 1 million cycles.
