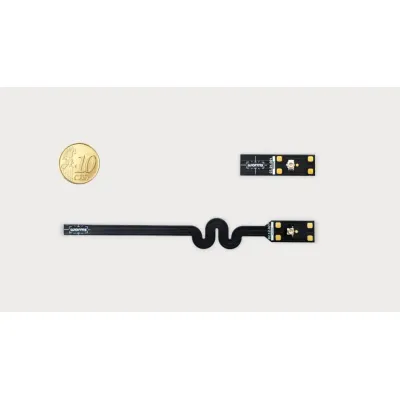

Dragonfly - Passive Sensors

The Dragonfly strain sensors represent an evolution in piezoelectric sensor technology, emphasizing both flexibility and robust design. These sensors are noted for their thin and lightweight characteristics, boasting the title of the world's thinnest piezoceramic sensor. Equipped for precise and reliable performance, they are designed for large-scale deployments and offer a plug-and-play experience. The Dragonfly Passive sensor provides high sensitivity across a wide bandwidth, functioning optimally from 0.01 Hz to 1 MHz with no power requirement, while operating up to 140°C. The Dragonfly IEPE sensor also features commendable sensitivity and operates within a frequency range of 0.02 to 100,000 Hz, powered by a low-consumption 4 mA current. Both sensors cater to diverse applications through their capability to conform to curved and complex shapes. Notably, Dragonfly sensors achieve low intrinsic noise levels, allowing for more precise measurements and higher accuracy. Furthermore, they are environmentally conscientious, boasting a lead-free composition, setting them apart in piezoelectric technology.
