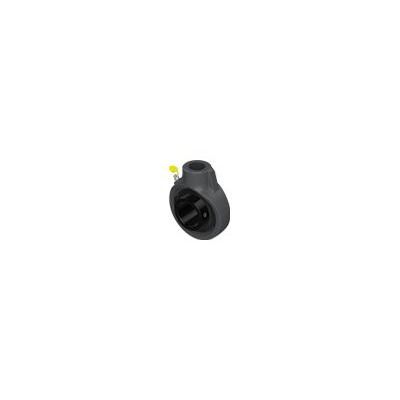

SealmasterPaver Bearings

SHARE

Sealmaster® paver bearings feature advances in sealing technology. These help to meet the performance needs of the industrial paving industry. Our technology has been developed by working closely with OEM`s. It has been proven with the paving contractor`s demand for more reliability and uptime for these severe duty applications.

Most popular related searches

Housing Styles
Pillow Block, Flanges, Take up

Bore Diameter Size Range
1" to 2 7/16"

Housing Material
Cast & Ductile Iron

High Temperature Contact Seal
The double lip high temperature contact seal is the most popular design used. Some designs incorporate a high temperature single lip contact seal. Alternatively, a combination of different seals for the front and back sides of the bearing are offered.

Nomex Seal with Flinger
The Nomex seal provides a high temperature, tight labyrinth seal which retains lubrication. This also acts as a filer to exclude contamination. The external stamping is a flinger which shields the felt from large contaminants and directs them away from the sealing surface.

Ductile Iron End Cap
A tough, wear resistant end cap that helps keep asphalt from forcing its way into the bearing.  The ductile-iron, bolt-on end cap mates with the casting providing the fist barrier against abrasive asphalt.

Rotating Shield
The black oxidized shield is fixed to the extended inner ring. It is precision machined to run with a small clearance along with the end cap. The shield resists asphalt erosion and helps protect the inner sealing elements.

Self-Adjusting Washer
A conical-shaped mechanical seal is located directly behind the rotating shield supplying the bearing with a third contamination barrier.  The stainless steel washer attaches to the bearing’s inner ring.
