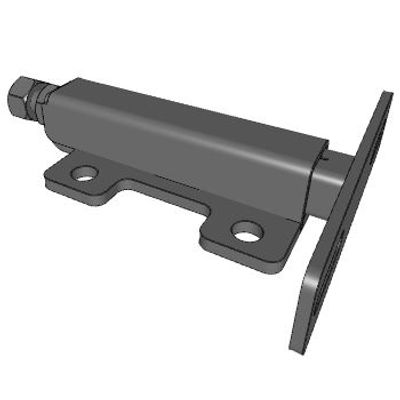

PCI - Model TS100X3TUFP-SS -Telescoping Take Up Frame
PCI Manufacturing provides a comprehensive range of Telescoping Take Up Frames designed for conveyor systems. These frames are essential for maintaining tension, ensuring that conveyor belts run smoothly and efficiently. The frames come in various materials, including carbon steel and stainless steel, to suit different operational environments. Sizes vary significantly with total lengths ranging from around 7.938 inches to 18.688 inches, and all models have a standard width of approximately 6.375 inches. Some frames feature tension indicators for easy monitoring and adjustment. The Telescoping Take Up Frames are resilient, providing reliable tensioning solutions that accommodate varying lengths and widths based on specific operational requirements. This adaptability ensures optimal performance and longevity of the conveyor belts, making them suitable for heavy-duty usage in mining, industrial, and other demanding sectors. CAD files are available for precise integration into existing systems.
- UPC Code : 00841946140982
- Series : 100
- Type : Telescoping Take Up Frame
- Style : Side/End Mount
- Compatible Bearing : Pillow block, ball, or roller bearing
- Frame Material : Stainless Steel
- CAD Disclaimer : Every reasonable effort has been made to ensure the accuracy of the information contained herein, however no liability is accepted for errors, omissions or for any other reason. Specifications are subject to change without notice.
PCI Telescoping Take-Up Frames feature our exclusive indicator pin, showing the user exactly how much travel is available in either direction. Telescoping frames are side mounted, and their design allows the pulley and bearings to be cantilevered outside of the conveyor frame.
- Total Length (B) : 7.938 in 201.613 mm
- Bolt Hole Spacing [Lateral] (D) : 3.563 in 90.488 mm
- Bolt Hole Spacing (E) : 2.625 in 66.675 mm
- Bolt Size (R) : 7/16
- Total Height (Q) : 1.500 in 38.100 mm
- Total Width (W) : 6.375 in 161.925 mm
- Travel : 3.000 in 76.200 mm
- Base Thickness : 0.250 in 6.350 mm
- Compatible Bore Size [Max] : 1.000 in 25.400 mm
- Frame Height : 1.500 in 38.100 mm
