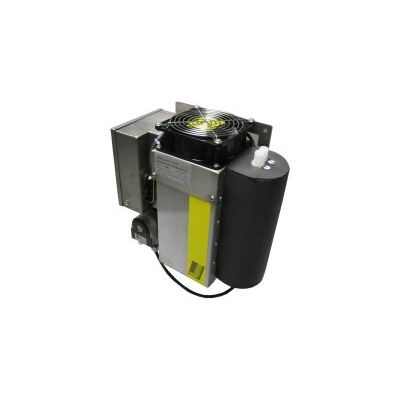

JCT - Model JCM-300 -Peltier Sample Gas Cooler
Applications: For extractive gas analysis. For emission and process monitoring. Continuous drying of sample gas to a precise low and constant outlet dew point. Minimises water vapour cross sensitivities and volumetric errors.
Most popular related searches
sample gas cooler
sample gas
gas cooler
gas sampling
condensate monitoring
condensate separator
temperature indicator
condensate pump
gas analysis
condensate pumping
- Very powerful compact complete unit with condensate removal and condensate monitoring
- High flow rates of up to 250 Nl/h per gas path
- Very low wash out ratios even at high water vapour concentrations in the sample gas
- High inlet dew points up to 80°C possible
- Reliable condensate separation even at very high ambient temperatures up to 50°C
- Extremlely precise long term stable dew point even under varying loads
- Maximum operational safety
- Low maintenance operation
- Easy to maintain design
- New extremely powerful modular designed compact construction with one or two independant gas paths
- New heat exchanger construction in differnet materials
- Intelligent digital control electronic
- Digital temperature indication
- Applicable up to an ambient temperature of 50°C
- Integrated condensate pump as option
- Integrated condensate monitoring as option
- Status contact for temperature threshholds as well as for condensate alarm
- Visual alerting via LED’s and digital display
- Self monitoring with deactivation of the external sample pump in case of alarm
- Ready for operation within less than 15 minutes
