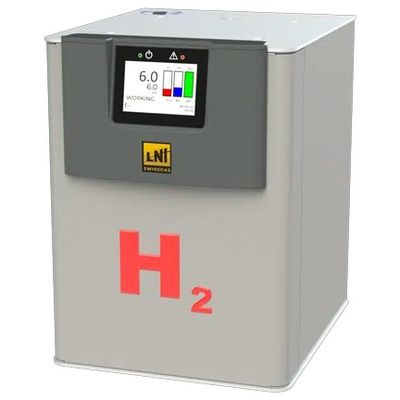

LNI Swissgas - Model HG Kube V2 -PEM Hydrogen Generator

The HG KUBE V2 is able to generate up to 260 cc/min of Hydrogen with purity better than 99.9996% and pressure up to 12 bar (174 psi). The HG KUBE V2 includes a cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are involved. The innovative static drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its unique humidity safe guard, it is completely maintenance-free and allows continuous operation, 24 hours a day. The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
