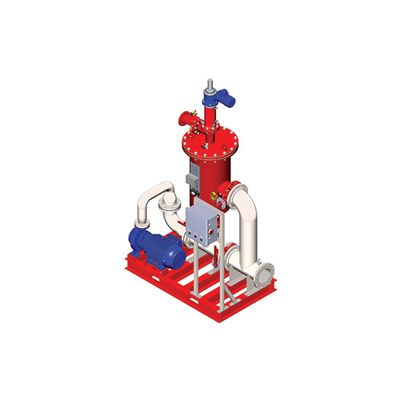

PEP-Filters - Model EBS -Screen Filter

Components: Standard Design

• Filter Vessel: Epoxy coated carbon steel, 150 PSIG
• Filter Screen: 316L stainless steel, woven mesh
• Backwash Initiation: Automatic (24 hour/7 day clock, differential pressure switch and manual push button)
• Backwash Source: Tower/system water
• Backwash Duration: 30 seconds @ 220 gpm
• Face Piping: 304 stainless steel
• Pump/Motor: System matched centrifugal pump with close-coupled TEFC motor
• Isolation Valves: Lever operated butterfly valves
• Flush valve: Hydraulically actuated diaphragm
• Electrical Controls: NEMA 4X thermoplastic UL-labeled control panel with lockable UV-resistant clear access cover, main power disconnect switch, overload protection, pump motor starter and control voltage transformer
• Supply Power: 460VAC, 3-PH, 60 Hz
• Base/Skid: Fully skid-mounted on epoxy coated I-beam base
• Warranty: 1 year against defects in materials and workmanship
